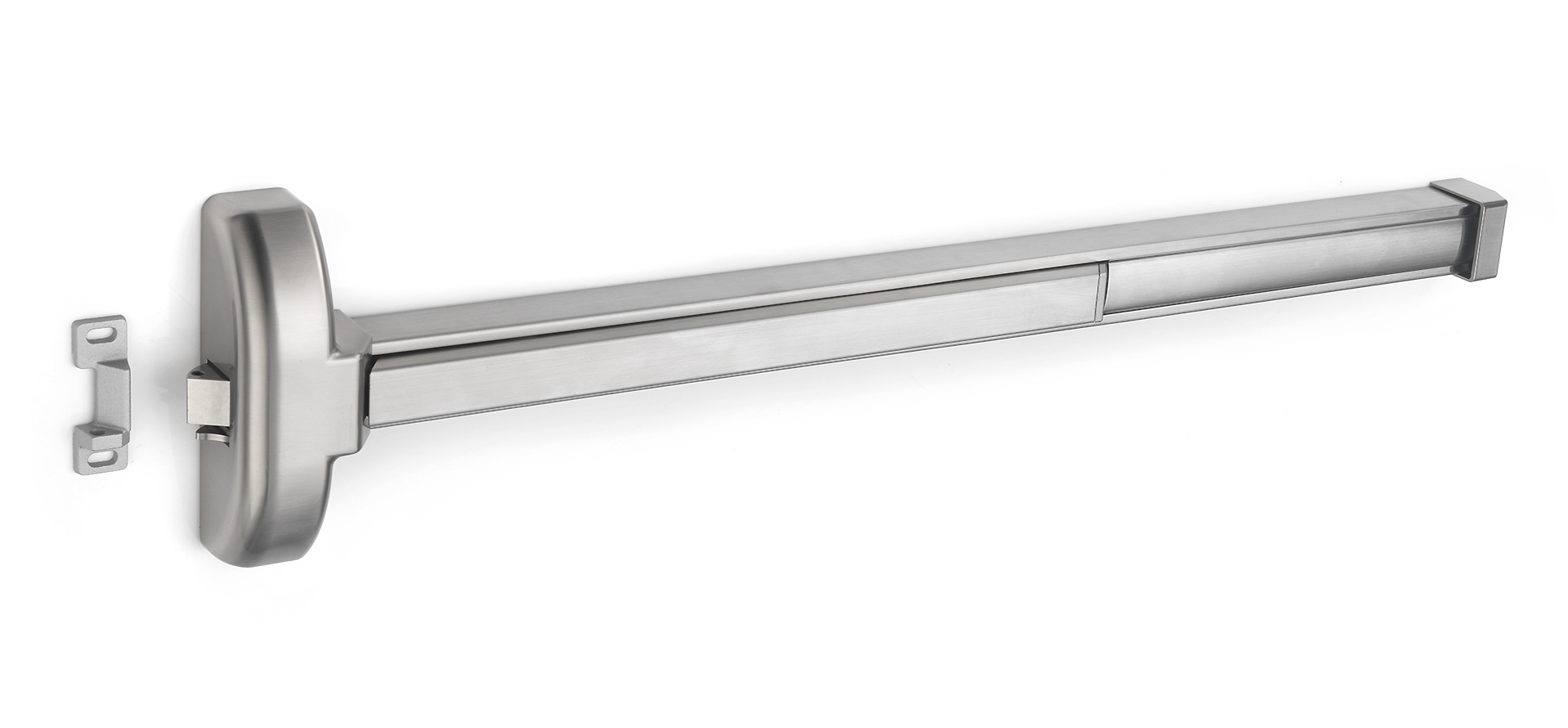

Product Name : Rim device (Exit hardware/ Fire exit hardware)
Product No : F5000R-AF
Product Description


Material Push bar –Steel pressed or stainless steel pressed
Head Cover – Zinc alloy
Spring – Stainless steel
Latch Bolt 3/4’ throw, deadlocking design
Strike For 5/8" stop. Plus shim for 1/2" stop
Projection Pushbar Neutral: 2-3/16"(55mm)
Pushbar Depressed: 1-7/8"(47mm)
Reversible Non-handed, reversible for all functions and trims
For Door 1-3/4” thick of wood or metal door
Door Width 3' standard for door width of 26" to 36", 4' standard for door width 38" to 48"
Stile 4-1/4” minimum
Mounting Height 40-5/16” from CL to finished floor recommended
Mounting Fasteners Furnished standard with sheet metal & machine screws or SNB as option
Cylinders For trim, knob, lever & thumb-piece type
Dogging 1/4 turn, hex key dogging on non-fire labeled device
UL Listed For “Panic Hardware” and “UL”. Labeled (3 hours) fire exit hardware
Operation Inside by slight pressure on any point of the push bar all time

In accordance with California PROP65 –

proimages/warning-6.png WARNING: Cancer & Reproductive Harm www.P65Warnings.ca.gov


Drawings & Dimensions


Mounting Position


Model Actual Length Minimum Door Size
3' standard 32-7/8" (836mm) 26" (660mm) 35" to 36" door width
4' standard 44-7/8" (1141mm) 38" (965mm) 47" to 48" door width


  • UL 305 (Panic Hardware)
  • UL 10C (Positive Pressure Fire Tests of Door Assemblies)
