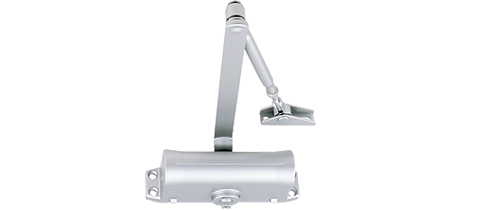

Power size 1/2/3 door closer, rack & pinion with link arm

QUICK SEARCH

Power size 1/2/3 door closer, rack & pinion with link arm
  • Power size 1/2/3 door closer, rack & pinion with link arm
Power size 1/2/3 door closer, rack & pinion with link arm
Product Name : Power size 1/2/3 door closer, rack & pinion with link arm
Product No : C100
Product Description
proimages/UL.png
black

black

brown

brown

gold

gold

silver

silver

white

white

Inquiry

Features

  • Fixed power size 1/2/3
  • Adjustable closing speed
  • Surface mount
  • Rack & Pinion
  • Standard arm
  • Built in hold-open (optional upon request) ★
  • Single-action door
  • Non-handed installation
★ This option is not covered by the Certificate


In accordance with California PROP65 –

proimages/warning-6.png WARNING: Cancer & Reproductive Harm www.P65Warnings.ca.gov

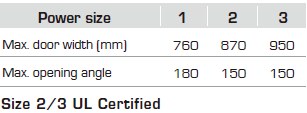

proimages/C100_table.PNG

Application Ranges

  • Standard door mount on pull side- C102/ C103
  • Transom mount on push side- C102/ C103
  • Parallel bracket mount- C101 only★
★ This option is not covered by the Certificate

Finishes

  • Painted – silver, brown, gold, black, white & other RAL colors upon request & discussion

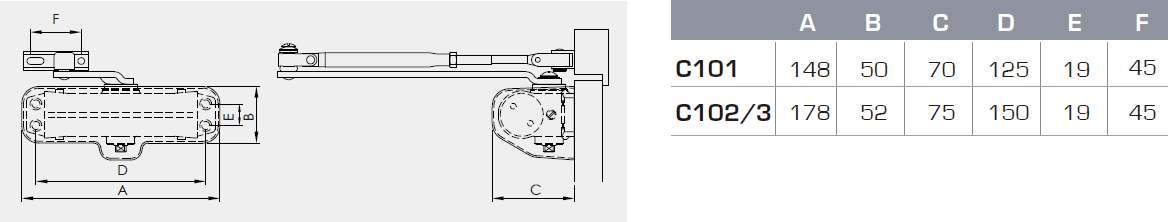

Dimensions

proimages/C100_di.PNG

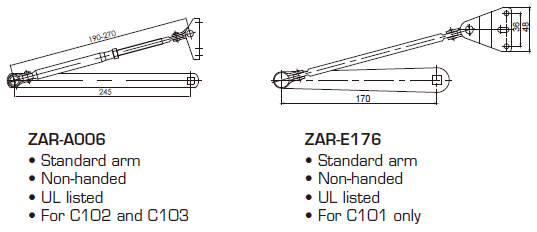

Accessories

proimages/C100_acc.PNG

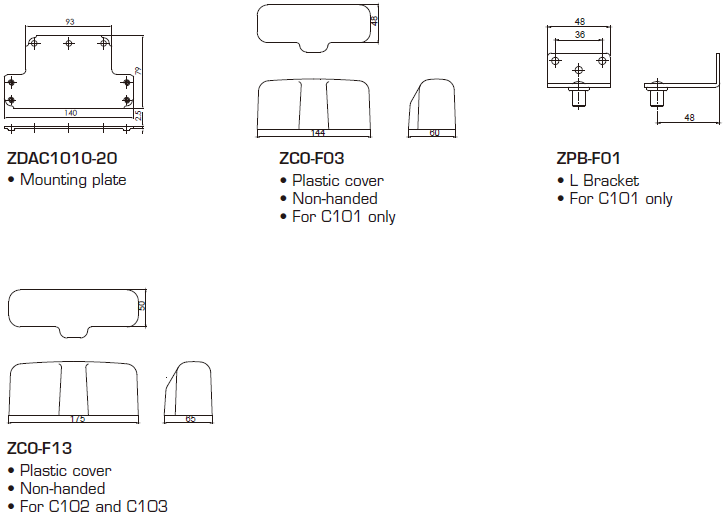

Options

proimages/C100_option.PNG

  • UL 228 (Door Closers-Holders, With or Without Integral Smoke Detectors)
  • ANSI/UL 10C (Positive Pressure Fire Tests of Door Assemblies)
