Features
- Adjustable power size EN2~4
- Adjustable closing & latching speed
- Adjustable back check
- Thermo-constant valve
- Surface mount
- Cam action
- Track arm
- Single-action door
- Non-handed installation
- Compatible with Fortress electromagnetic hold-open application (EHO)
Application Ranges

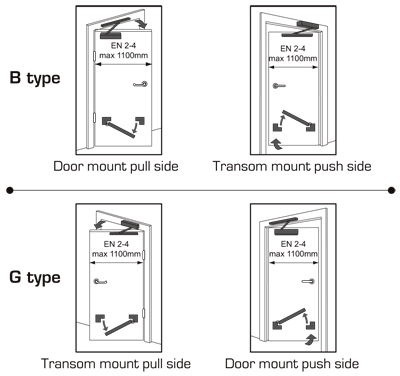

- B type: Door mount pull side & transom mount push side
- G type: Door mount push side & transom mount pull side
- Max. door width (mm) 1100
- Max. opening angle 180
Installation
Finishes
- Anodized aluminum for door closer body and track rail as standard
- Painted – silver, brown, gold, black, white & other RAL colors upon request & discussion
- Plating (for cover only) - US finish code colors upon request & discussion

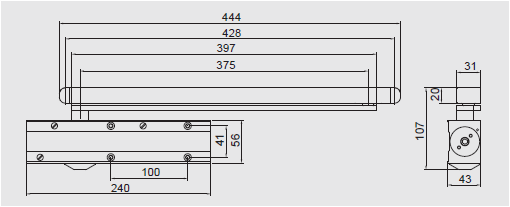

Dimensions

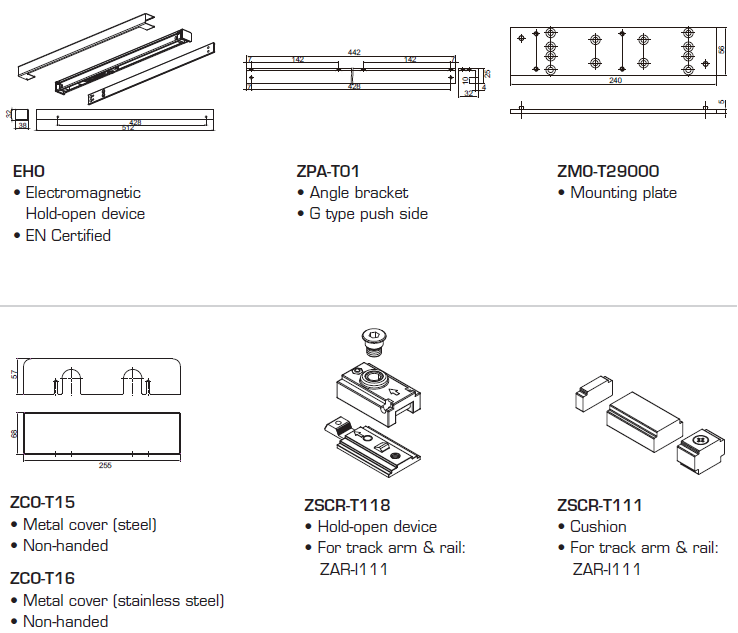

Accessories
Options
- BS EN 1154 (Mechanical)
- BS EN 1634 (Fire)
- BS EN 8300 (Ease of Access)
- BS EN 1158 (Door coordinator devices)
- BS EN 1155 (Electromagnetic Hold-Open device)
