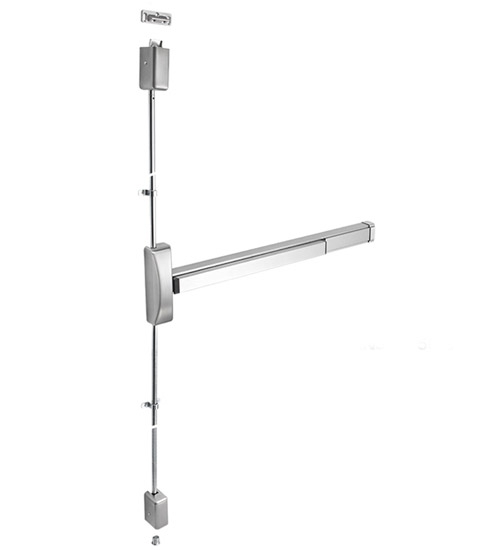

Product Name : Surface vertical rod device (Exit hardware/ Fire exit hardware)
Product No : 7100V
Product Description
proimages/AN_G2.png

Specifications

Material Push bar –Steel pressed or stainless steel pressed
Head Cover – Steel pressed or stainless steel pressed
Spring – Stainless steel
Latch Bolt 5/8’ throw, stainless steel
Dead Latch Bolt 9/16”, steel
Strike For 5/8” stop
Projection 2-1/2” maximum, 1-7/8” pressed
Reversible Non-handed, reversible for all functions and trims
For Door 1-3/4” thick of wood or metal door
Door Width 3’ standard for door width of 29” to 36”; 4’ standard for door width of 41” to 48”
Stile 4-1/4” minimum
Top and bottom rod
length for 7’ door
Top rod 35-5/8” , bottom rod 34-3/4”
Top and bottom rod
length for 8’ door
Top rod 47-5/8” , bottom rod 34-3/4”
Mounting Height 40-5/16” from CL to finished floor recommended
Mounting Furnished standard with sheet metal & machine screws or SNB as option.
Cylinders For trim, knob, lever & thumb-piece type “Schlage C” key way
Dogging 1/4 turn, hex key dogging on non-fire labeled device
UL Listed For “Panic Hardware” and “UL”. Labeled (3 hours) fire exit hardware. (testing)
Ansi Standard A156.3 Grade 2
Operation Inside by slight pressure on any point of the push bar all time
Head Cover 8-1/2”x2-3/4”x2-1/2” (216mm x 68.3mm x 62mm)
Standard Finishes US32D (or other available finishes upon request & discussion)

In accordance with California PROP65 –

proimages/warning-6.png WARNING: Cancer & Reproductive Harm www.P65Warnings.ca.gov



Drawings & Dimensions

proimages/Drawings__Dimensions_7100V.JPG

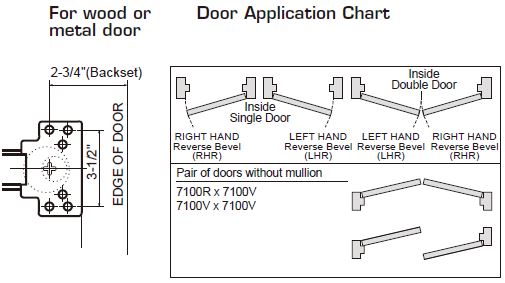

Mounting Position


proimages/Mounting_Position_7100V.JPG

Model Actual Length Minimum Door Size
3' standard 32-7/8" (836mm) 29" (735mm) 35" to 36" door width
4' standard 44-7/8" (1141mm) 41" (1040mm) 47" to 48" door width

Options

proimages/option-7100_1.JPGproimages/option-7100_2.JPG
  • ANSI/BHMA A156.3, Grade 1 certified
  • UL 305 (Panic Hardware)
  • UL 10C (Positive Pressure Fire Tests of Door Assemblies)
