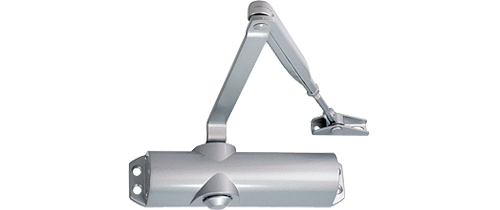

Product Name : EN selectable 2-4 door closer, rack & pinion with link arm
Product No : C69V
Product Description
proimages/ce_logo.jpg
  No. 2812
black

black

brown

brown

gold

gold

silver

silver

white

white

Features

  • Selectable position power size EN2~4
  • Adjustable closing & latching speed
  • Thermo-constant valve
  • Surface mount
  • Rack & pinion
  • Standard arm
  • Single-action door
  • Non-handed installation

Application Ranges

  • Standard door mount on pull side
  • Transom mount on push side ★
  • Parallel bracket mount on size 3
  • Max. Door width (mm) 1100
  • Max. Opening Angle 180
★ This option is not covered by the Certificate

Finishes

  • Painted – silver, brown, gold, black, white & other RAL colors upon request & discussion

Dimensions

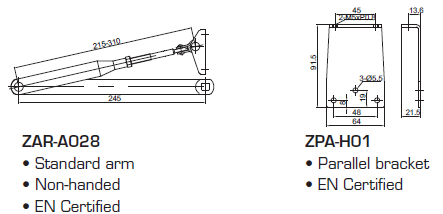

Accessories

proimages/C69V_acc.PNG

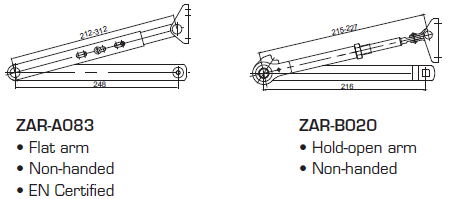

Options

proimages/C69V_option.PNG

  • BS EN 1154 (Mechanical)
  • BS EN 1634 (Fire)
