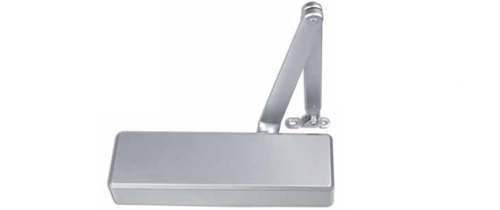

Product Name : Adjustable power size 1-6 door closer, rack & pinion with link arm
Product No : I50N
Product Description
proimages/AN-4.png
Inquiry

Features

  • Adjustable power size 1~6
  • Adjustable closing & latching speed
  • Adjustable backcheck
  • Adjustable delay action
  • Thermo-constant valve
  • Tri-pack standard, additional arms optional
  • One-piece cast-iron construction
  • All function regulators on same side for easier adjustment
  • Rack & Pinion
  • Single action door
  • Non-handed installation

In accordance with California PROP65 –

proimages/warning-6.png WARNING: Cancer & Reproductive Harm www.P65Warnings.ca.gov



Application Ranges

  • Door mount on pull side
    max door open 120˚
  • Transom mount on push side
    max door open 120˚
  • Parallel bracket application on size 1~6
    max door open 90˚/120˚/180˚ upon mounting positions

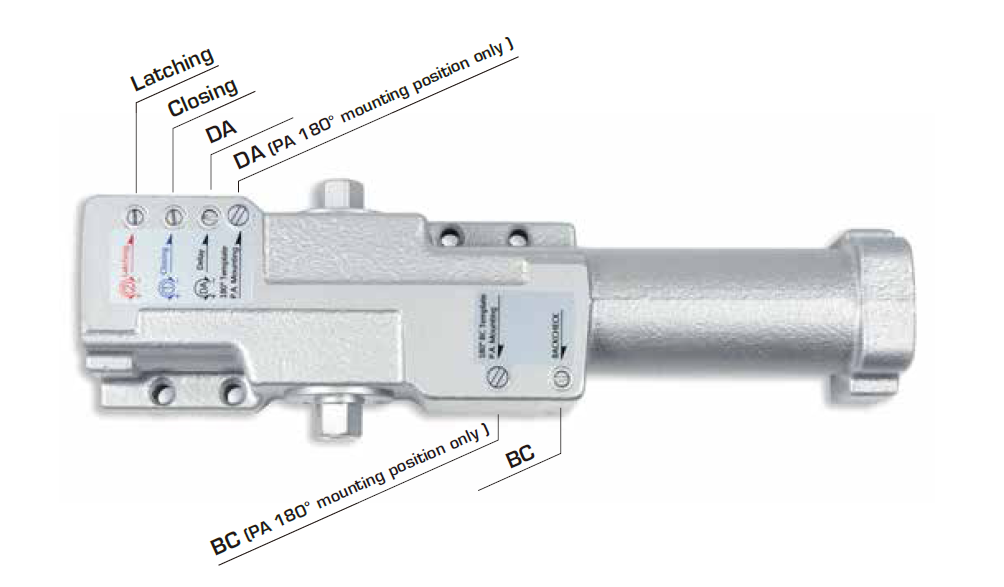

proimages/I40N2.png



Finishes

  • Painted – silver, brown, gold, black, white & other RAL colors upon request & discussion

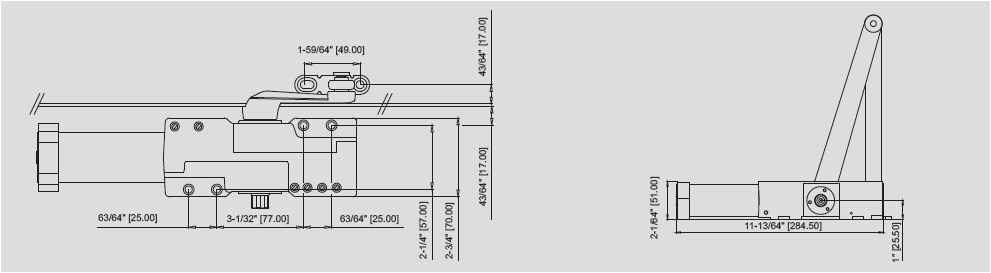

Dimensions

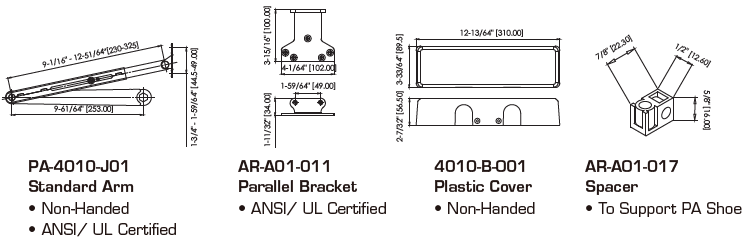

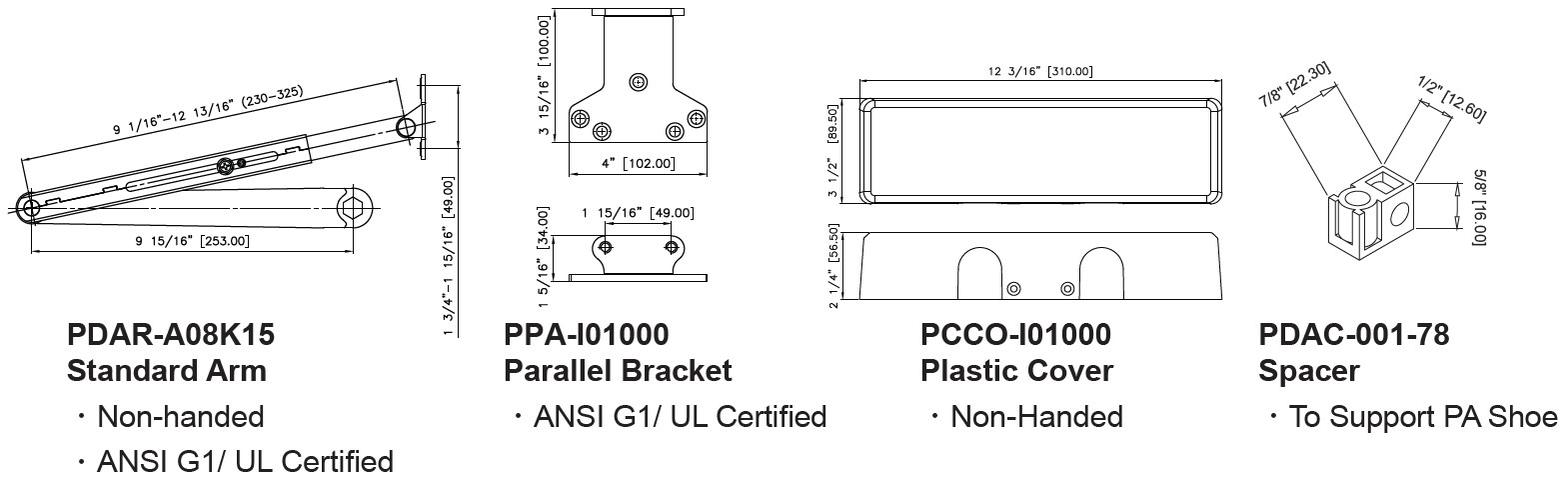

Accessories

proimages/I50N_acc.png

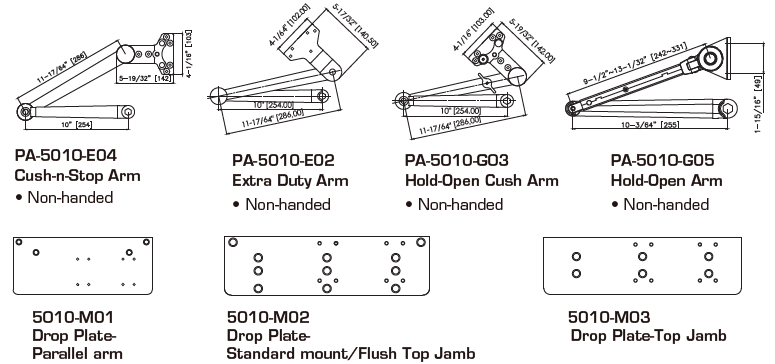

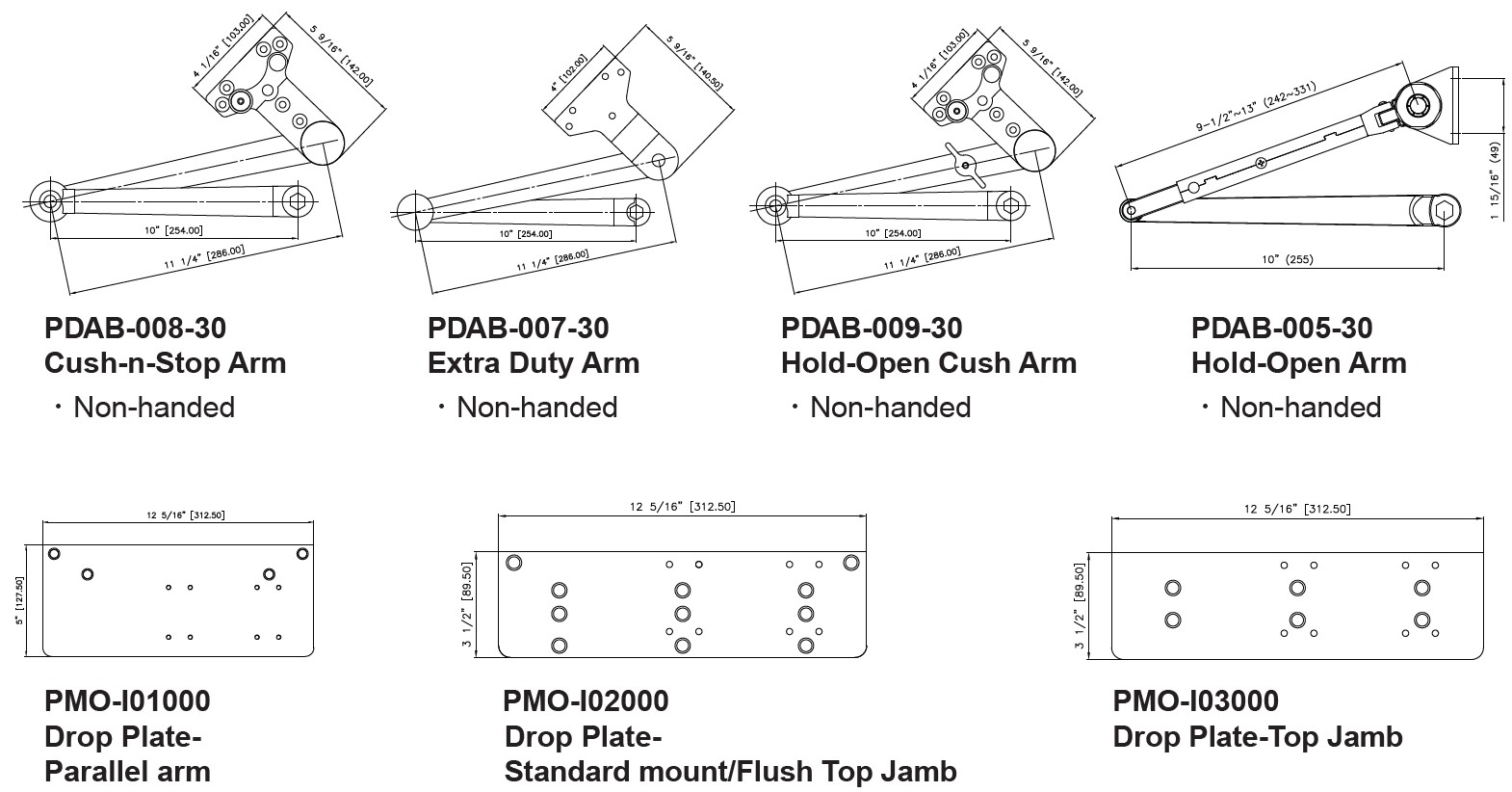

Options

proimages/I50N_option.png

  • ANSI/BHMA A156.4, Grade 1 certified
  • UL 228 (Door Closers-Holders, With or Without Integral Smoke Detectors)
  • ANSI/UL 10C (Positive Pressure Fire Tests of Door Assemblies)
  • Meet ADA requirement
