EN 2-4 transom closer

QUICK SEARCH

EN 2-4 transom closer
  • EN 2-4 transom closer
EN 2-4 transom closer

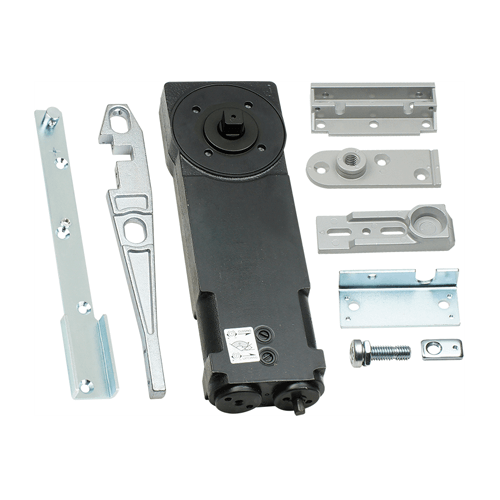

Product Name : EN 2-4 transom closer
Product No : R580
Inquiry

Features

      • Adjustable power size 2-4
      • Adjustable closing & latching speed
      • Maximum door opening angle at 130°
      • Mechanical hold-open at 90° or 105° (optional upon request)
      • Concealed transom mount

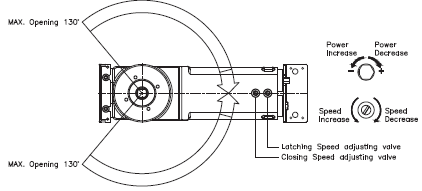

proimages/R580-feature.png

Application Ranges

  • Suitable for single & double action door
  • Available for light , medium & heavy duty door

Finishes

  • Painted – black & other colors upon request & discussion

Accessories

  • Standrad arm
  • Side load arm
  • End load arm
  • Front bracket
  • Back bracket
  • Pivot
  • Heavy duty pivot (max door weight 330 lbs (150kg))

Dimensions

proimages/R580-dimension.png
  • BS EN 1154 (Mechanical)
