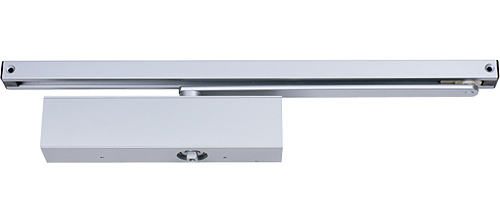

Features
- Adjustable power size EN2~4
- Adjustable closing & latching speed
- Adjustable back check
- Adjustable delay action (optional upon request) ★
- Thermo-constant valve
- Surface mount
- Rack & Pinion
- Track arm
- Single-action door
- Non-handed installation
★ This option is not covered by the Certificate
Application Ranges
- Standard door mount on pull side
- Transom mount on pull and push side
- Max. door width (mm) 1100
- Max. opening angle 180
Finishes
- Anodized aluminum for door closer body as standard
- Painted – silver, brown, gold, black, white & other RAL colors upon request & discussion
- Plating (for cover only) - US finish code colors upon request & discussion

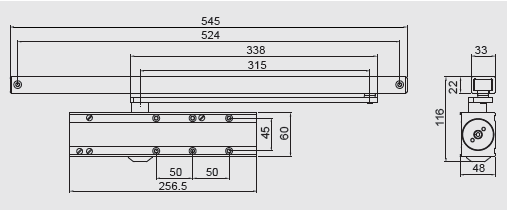

Dimensions

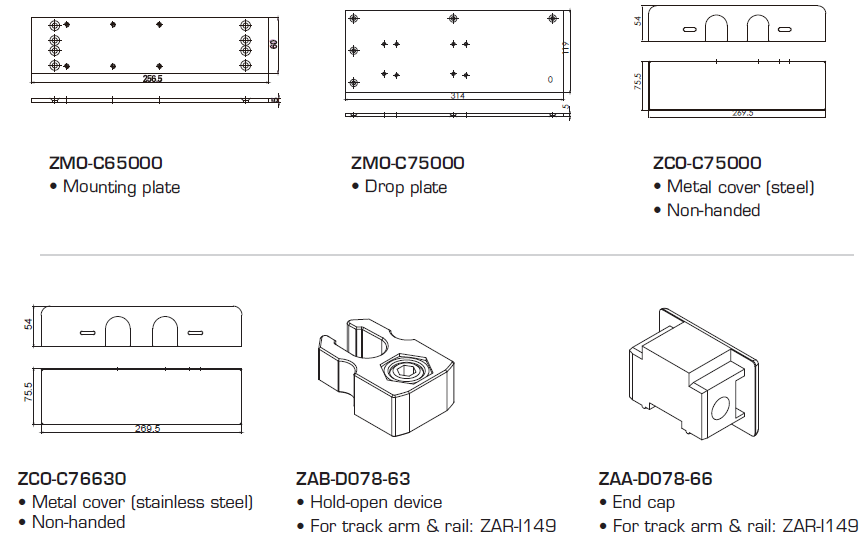

Accessories
Options
- BS EN 1154 (Mechanical)
- BS EN 1634 (Fire)
