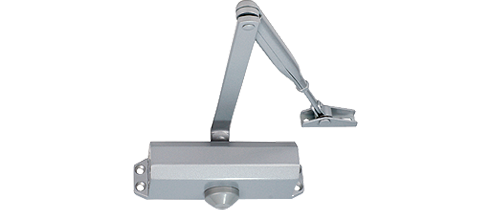

Product Name : EN 3 door closer, rack & pinion with link arm
Product No : C76B
Product Description
proimages/ce_logo.jpg
proimages/warrington.jpg
black

black

brown

brown

gold

gold

silver

silver

white

white

Features

  • Fixed power size 3
  • Adjustable closing & latching speed
  • Thermo-constant valve
  • Surface mount
  • Rack & Pinion
  • Standard arm
  • Single-action door
  • Non-handed installation

Application Ranges

  • Standard door mount on pull side
  • Transom mount on push side
  • Parallel bracket mount on size 3
  • Max. door width (mm) 950
  • Max. opening angle 180

Finishes

  • Painted – silver, brown, gold, black, white & other RAL colors upon request & discussion
  • Plating (for cover only) - US finish code colors upon request & discussion

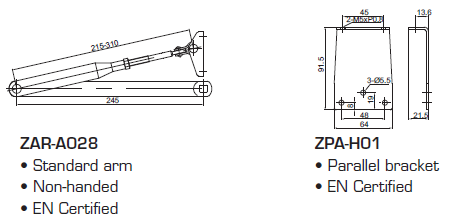

Accessories

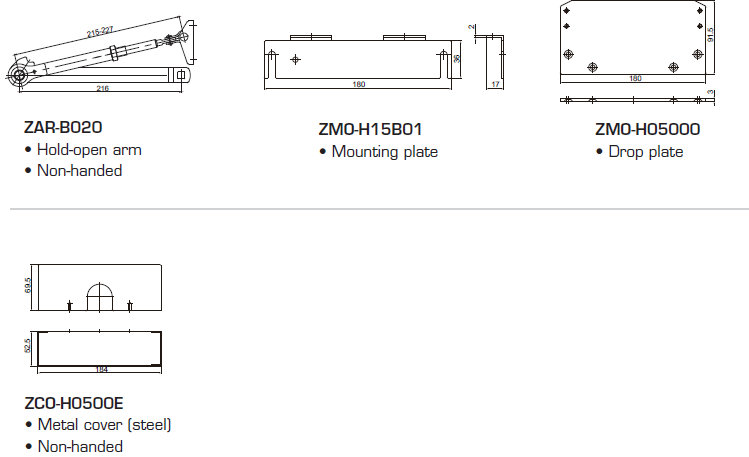

Options

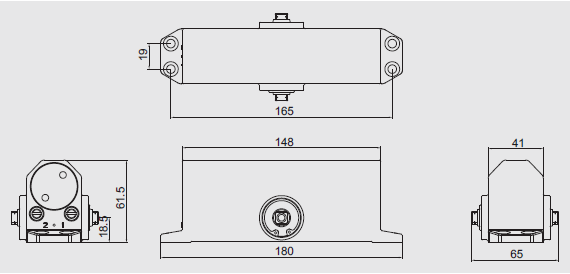

Dimensions

  • BS EN 1154 (Mechanical)
  • BS EN 1634 (Fire)
