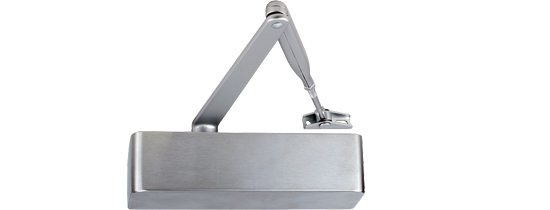

Product Name : EN 2-6 door closer, rack & pinion with link arm
Product No : T81J
Product Description
proimages/ce_logo.jpg
proimages/warrington.jpg
black

black

brown

brown

gold

gold

silver

silver

white

white

Features

  • Adjustable power size 2~6
  • Adjustable closing & latching speed
  • Adjustable back check
  • Adjustable delay action (optional upon request) ★
  • Thermo-constant valve
  • Surface mount
  • Rack & pinion
  • Standard arm
  • Single-action door
  • Non-handed installation
★ This option is not covered by the Certificate

Application Ranges

  • Standard door mount on pull side
  • Transom mount on push side ★
  • Parallel bracket mount on size 3~5
  • Max. door width (mm) 1400
  • Max. opening angle 180
★ This option is not covered by the Certificate

Finishes

  • Anodized aluminum for door closer body as standard
  • Painted – silver, brown, gold, black, white & other RAL colors upon request & discussion
  • Plating (for cover only) - US finish code colors upon request & discussion

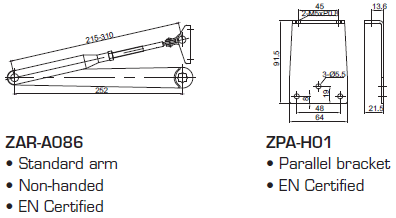

Accessories

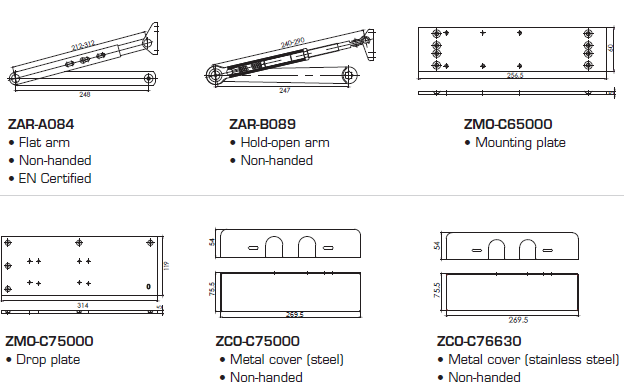

Options

Dimensions



  • BS EN 1154 (Mechanical)
  • BS EN 1634 (Fire)
