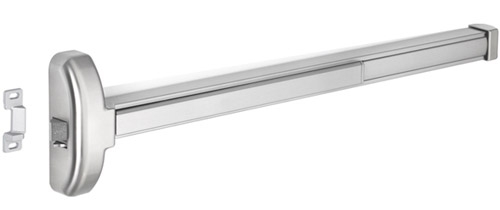

Product Name : Rim device (Exit hardware/ Fire exit hardware)
Product No : 5000R
Product Description
proimages/UL.png

Specifications

Material Push bar –Steel pressed or stainless steel pressed
Head Cover – Steel pressed or stainless steel pressed
Spring – Stainless steel
Latch Bolt 3/4’ throw, stainless steel
Dead Latch Bolt 5/8”, steel
Strike For 5/8” stop. Plus shim for 1/2” stop
Projection 2-1/2” maximum, 1-7/8” pressed
Reversible Non-handed, reversible for all functions and trims
For Door 1-3/4” thick of wood or metal door. Specify thickness if other than 1-3/4”
Backset 2-3/4” standard
Door Width 3’ standard for door width of 2’-6” to 3’-0”; 4’ standard for door width of 3’-0” to 4’-0”
Stile 4-1/4” minimum
Mounting Height 40-5/16” from CL to finished floor recommended
Mounting Furnished standard with sheet metal & machine screws or SNB as option
Cylinders For trim, knob, lever & thumb-piece type “Schlage C” key way
Dogging 1/4 turn, hex key dogging on non-fire labeled device
UL Listed For “Panic Hardware” and “UL”. Labeled (1.5 hours) fire exit hardware
Operation Inside by slight pressure on any point of the push bar all time

In accordance with California PROP65 –

proimages/warning-6.png WARNING: Cancer & Reproductive Harm www.P65Warnings.ca.gov



Drawings & Dimensions

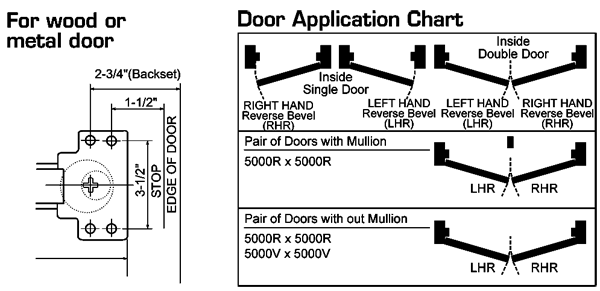

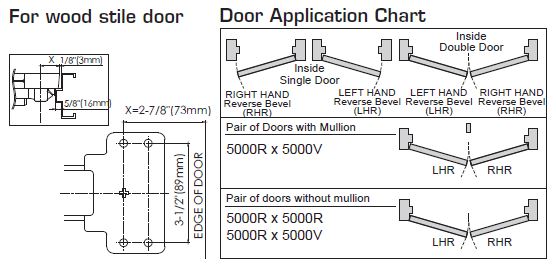

Mounting Position


ModelActual LengthMinimumDoor Size
3' standard 32-9/10" (836mm) 27" (685mm) 32" to 36" door width
4' standard 44-9/10" (1141mm) 39" (990mm) 44" to 48" door width

Options

proimages/5000-op.png
  • UL 305 (Panic Hardware)
  • UL 10C (Positive Pressure Fire Tests of Door Assemblies)
