Features
- Fixed power size 2/3/4
- Adjustable closing & latching speed

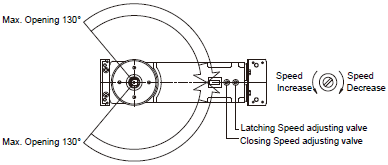

- Maximum door opening angle at 130°
- Mechanical hold-open at 90° or 105° (optional upon request)
- Concealed transom mount
Application Ranges
- Suitable for single & double action door
- Available for light , medium & heavy duty door
Finishes
- Painted – silver black & other colors upon request & discussion

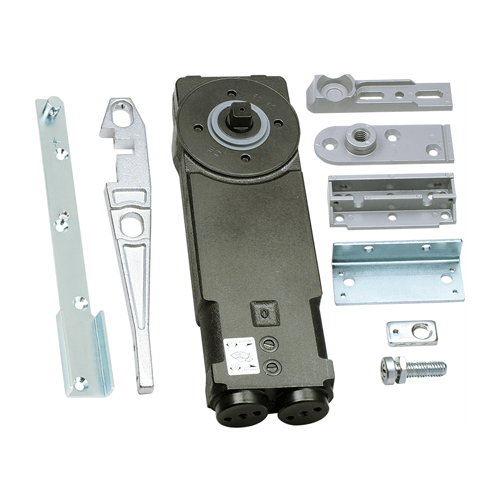

Accessories
- Standrad arm
- Side load arm
- End load arm
- Front bracket
- Back bracket
- Pivot
- Heavy duty pivot (max door weight 330 lbs (150kg))

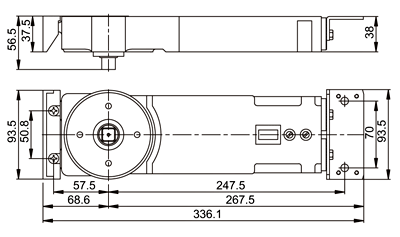

Dimensions
- BS EN 1154 (Mechanical)
