Product Name : Hydraulic patch fitting power size 3 EN compliance
Product No : B300EN

Features

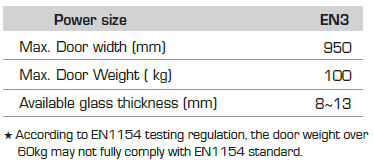

  • Fixed power size EN 3
  • Adjustable closing & latching speed

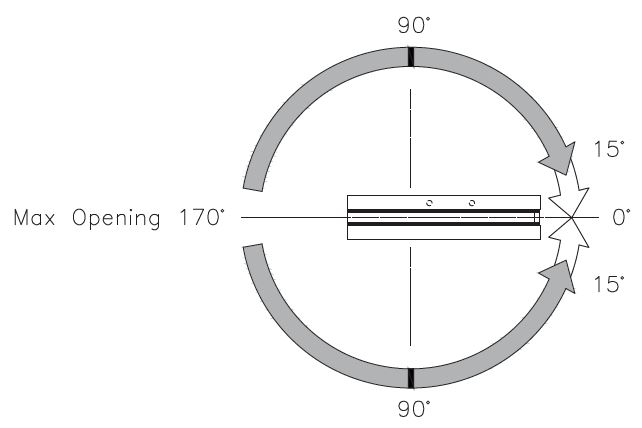

  • Maximum door open angle at 170° [EN Control 160°]
  • Mechanical hold-open at 90°
    (non-UL certified option upon request & discussion



proimages/B300EN門開角度.PNG

Application Ranges

  • Suitable for single and double action door
  • Available for light & medium duty door

Finishes

  • US32D (satin stainless steel) or other finishes upon request & discussion

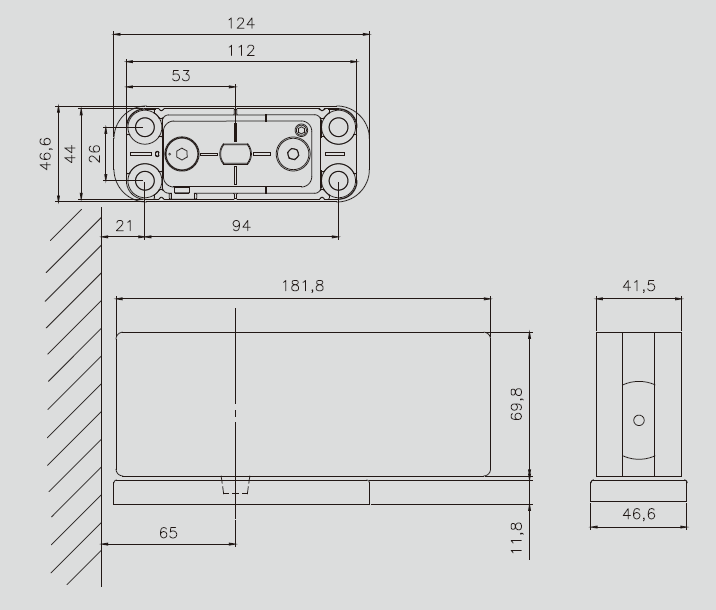

Dimensions

proimages/B300_Dim.png
  • EN 1154:1996
