Product Name : Adjustable power size 1-4 door closer, rack & pinion with link arm
Product No : C53F
Product Description
proimages/AN-4.png
black

black

brown

brown

gold

gold

silver

silver

white

white

Inquiry

Features

  • Adjustable power size 1~4
  • Adjustable closing & latching speed
  • Adjustable backcheck
  • Thermo-constant valve
  • Surface mount
  • Rack & Pinion
  • Standard arm
  • Single-action door
  • Non-handed installation

In accordance with California PROP65 –

proimages/warning-6.png WARNING: Cancer & Reproductive Harm www.P65Warnings.ca.gov

 proimages/C53_table.JPG

1. Indicates recommended application of door width for closer size. Determine door width, adjust spring power to match chart above.

2. For parallel arm application, it requires to adjust more spring power to meet door width.

Application Ranges

  • Standard door mount on pull side
  • Transom mount on push side
  • Parallel bracket mount on size 1~4

Finishes

  • Painted – silver, brown, gold, black, white & other RAL colors upon request & discussion

Dimensions

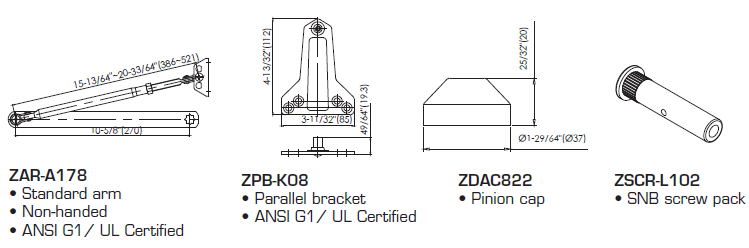

Accessories

proimages/C53F_acc.png

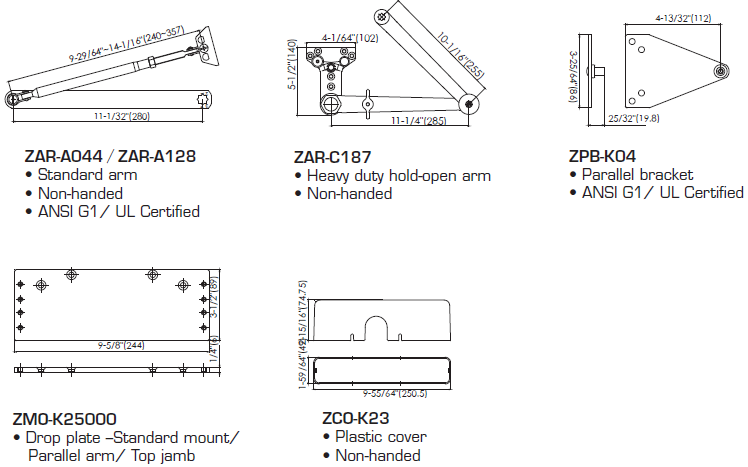

Options

proimages/C53F_option.png

  • ANSI/BHMA A156.4, Grade 1 certified
  • UL 228 (Door Closers-Holders, With or Without Integral Smoke Detectors)
  • ANSI/UL 10C (Positive Pressure Fire Tests of Door Assemblies)
