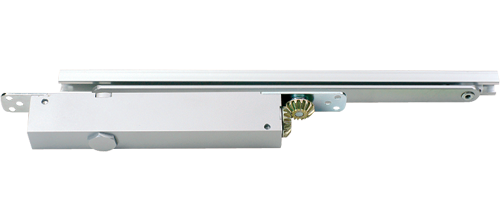

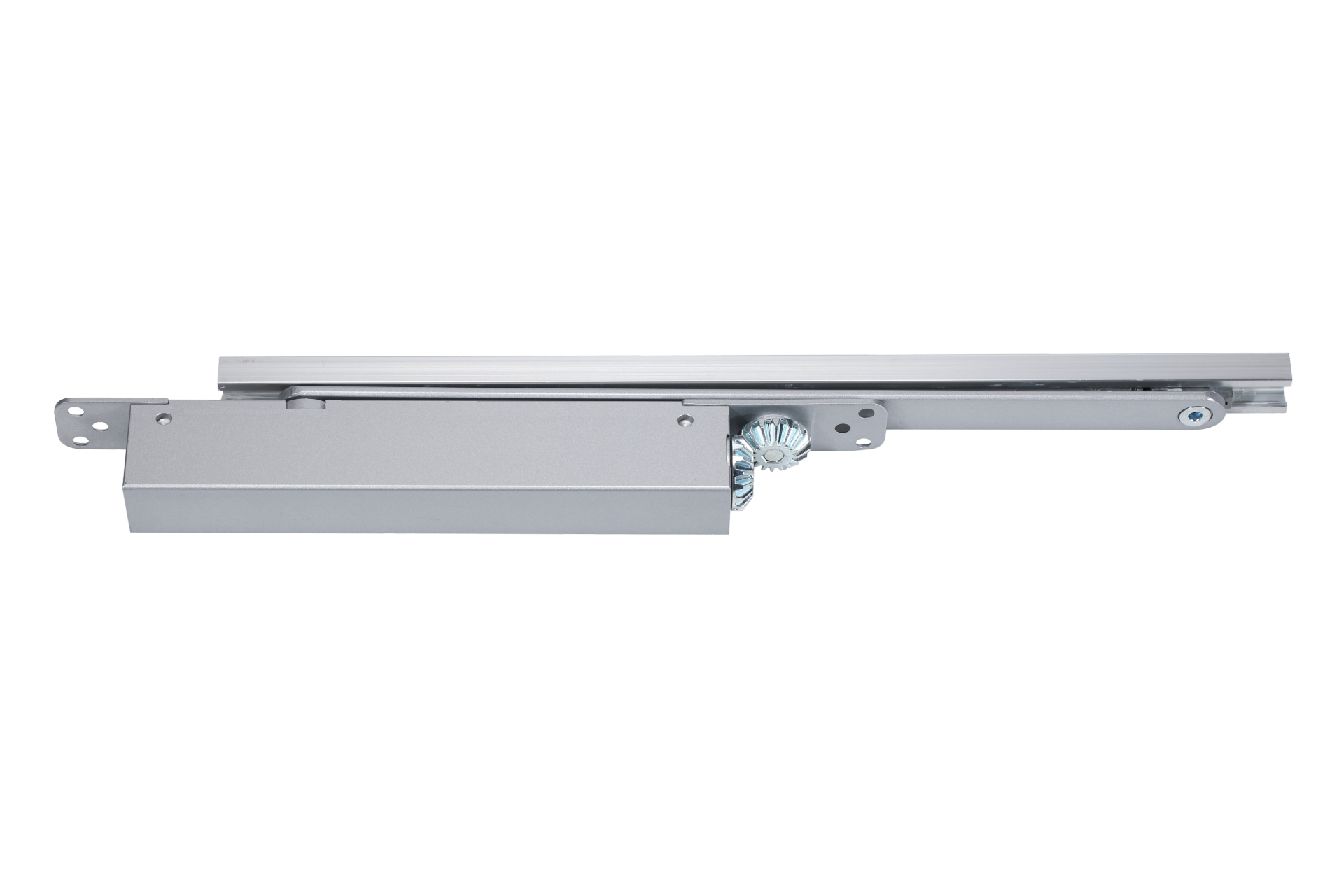

Product Name : EN 2-4 concealed door closer, cam action system
Product No : T96G
Product Description
proimages/ce_logo.jpg
proimages/warrington.jpg
black

black

brown

brown

gold

gold

silver

silver

white

white

Features

  • Adjustable power size 2~4
  • Adjustable closing & latching speed
  • Thermo-constant valve
  • Concealed mount
  • Cam action
  • Track arm
  • Single-action door
  • Non-handed installation
  • Compatible with Fortress electromagnetic hold-open application (EHO)
  • T96G can be installed in virtually all doors with minimum thickness of 40 mm

Application Ranges

  • Concealed in door
  • Concealed in transom
  • Max. door width (mm) 1100
  • Max. opening angle 120

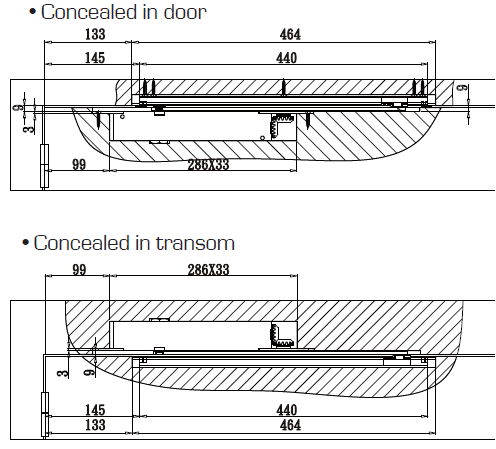

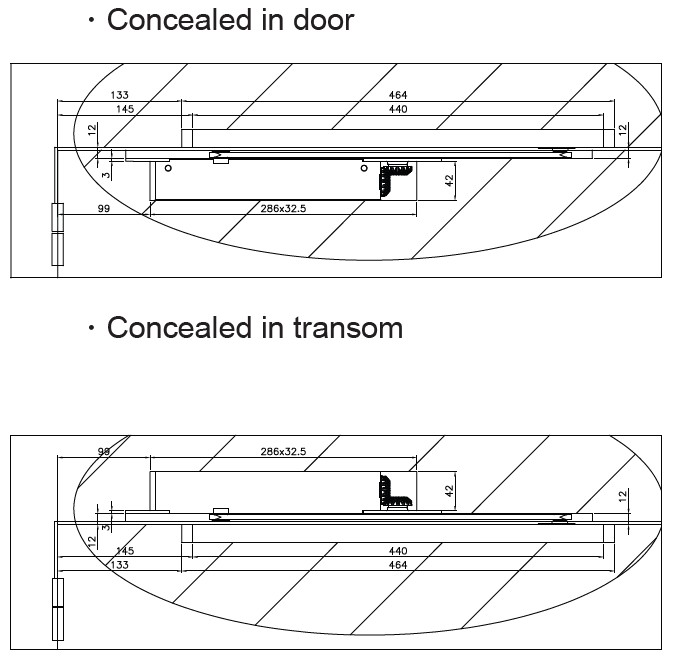

Installation

Finishes

  • Anodized aluminum for door closer body and track rail as standard
  • Painted – silver, brown, gold, black, white & other RAL colors upon request & discussion

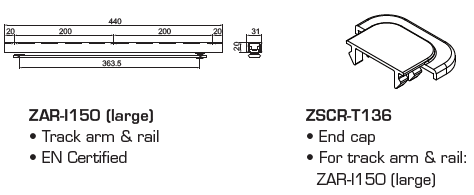

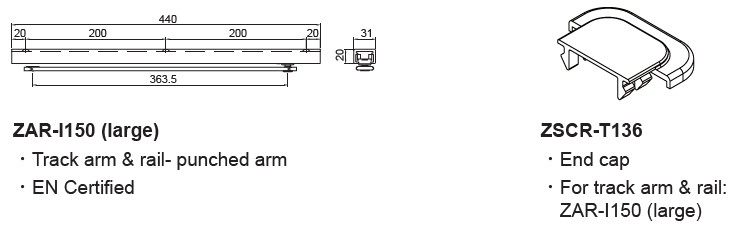

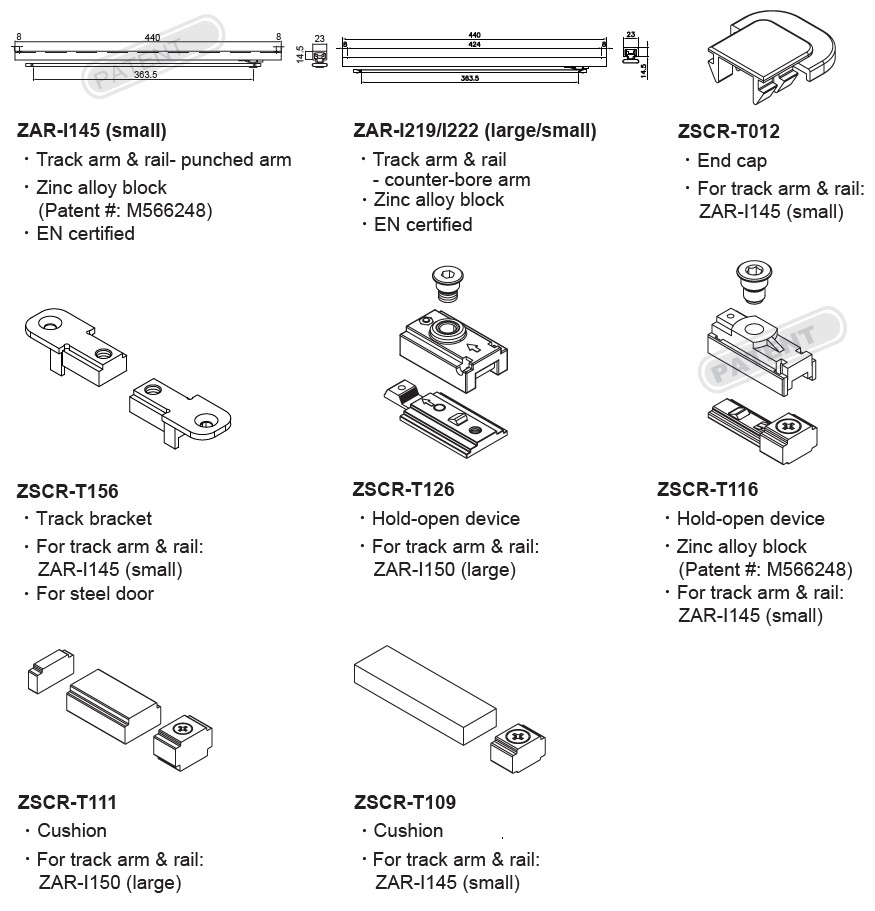

Accessories

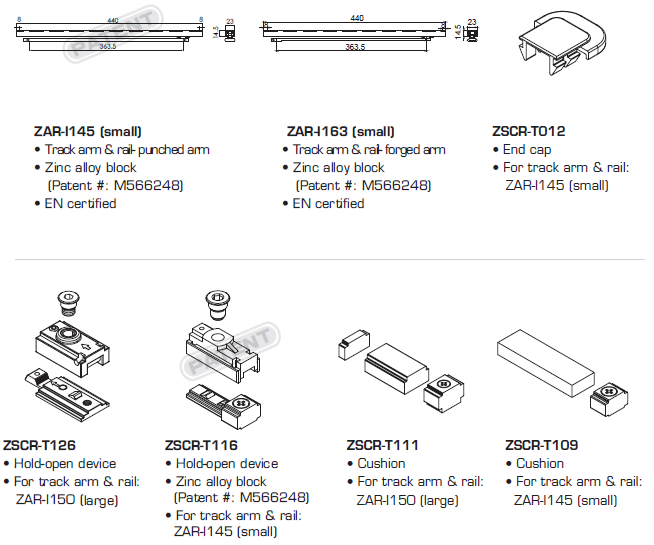

Options

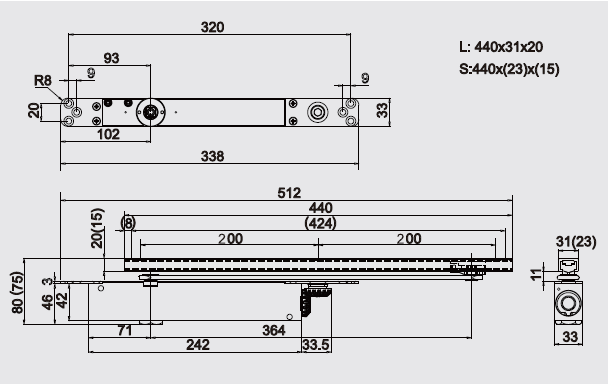

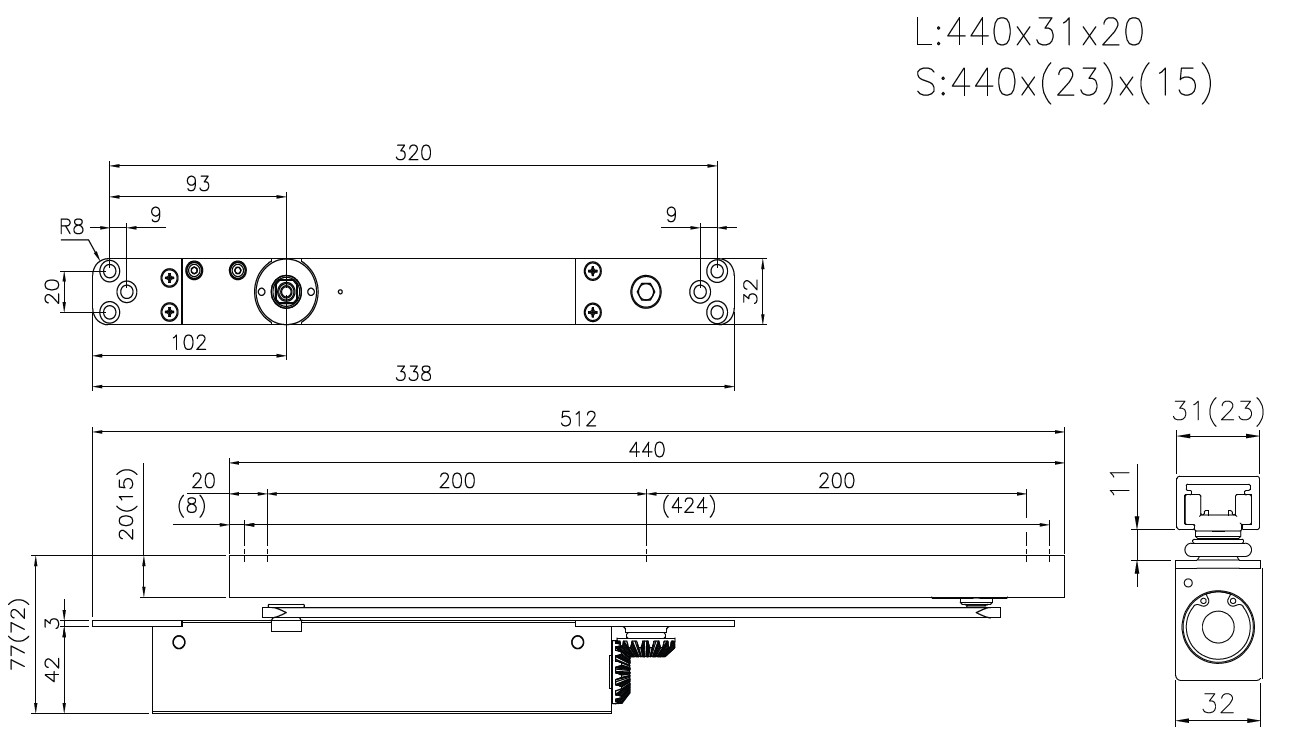

Dimensions

  • BS EN 1154 (Mechanical)
  • BS EN 1634 (Fire)
  • BS EN 8300 (Ease of Access)
  • BS EN 1158 (Door coordinator devices)
  • BS EN 1155 (Electrically powered hold-open devices)
