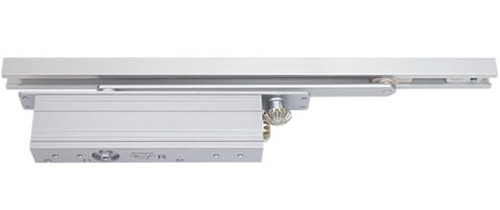

Product Name : Power size 3-5 concealed door closer, rack & pinion with slide arm
Product No : T67D
Product Description
black

black

brown

brown

gold

gold

silver

silver

white

white

Features

  • Adjustable power size 3~5
  • Adjustable closing & latching speed
  • Adjustable back check (optional)
  • Thermo-constant valve
  • Concealed mount
  • Rack & Pinion
  • Track arm
  • Hold-open function is reversible (optional)
  • Single-action door
  • Non-handed installation

Application Ranges

  • Concealed in door
  • Concealed in transom
  • Max. door width (mm) 1100
  • Max. opening angle 120

Finishes

  • Anodized aluminum for door closer body and sliding rail as standard
  • Painted – silver, brown, gold, black, white & other RAL colors upon request & discussion

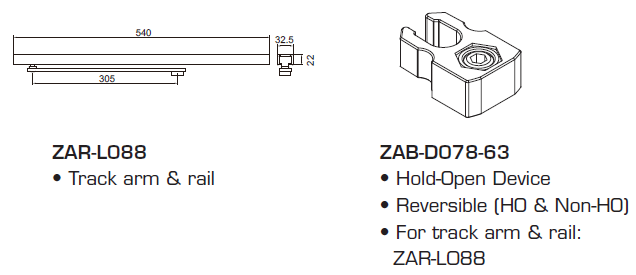

Accessories

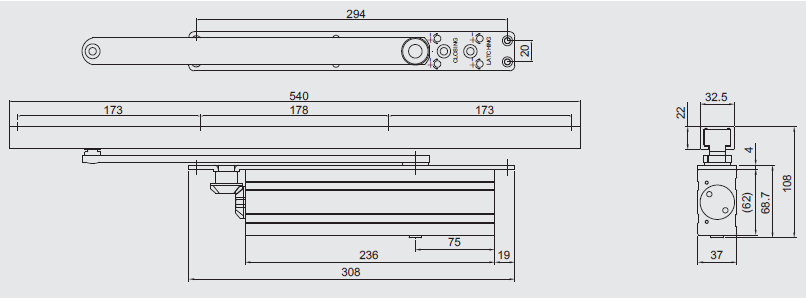

Dimensions
