Power size 2/3 concealed door closer, rack & pinion with slide arm
  • Power size 2/3 concealed door closer, rack & pinion with slide arm
Power size 2/3 concealed door closer, rack & pinion with slide arm
Product Name : Power size 2/3 concealed door closer, rack & pinion with slide arm
Product No : C380
Product Description
black

black

brown

brown

gold

gold

silver

silver

white

white

Inquiry

Features

  • Fixed power size 2&3
  • Adjustable closing & latching speed
  • Thermo-constant valve
  • Concealed mount
  • Rack & Pinion
  • Track arm
  • Single-action door
  • Non-handed installation

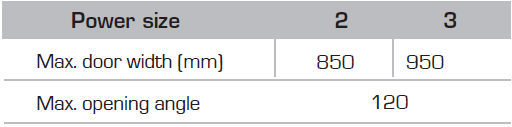

proimages/C380_table.PNG

Application Ranges

  • Concealed in door
  • Concealed in transom

Finishes

  • Anodized aluminum for door closer body as standard
  • Painted – silver, brown, gold, black, white & other RAL colors upon request & discussion

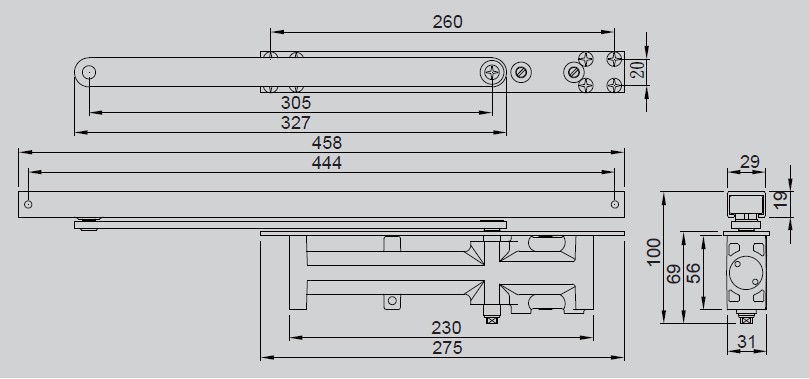

Dimensions

proimages/C380_SIZE.jpg

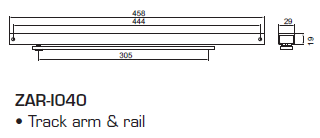

Accessories

Options

proimages/C380_option.PNG
