Product Name : Transom closer
Product No : R500UL
Product Description
proimages/UL.pngproimages/ADA_compliant.JPG

Certificate

    UL: 2-4 (R500) /2-3 (R50B1) /3-5 (R50C1) /1-4* (R50D1)
    ADA Compliant: 1-4
    * Size 1 is not covered by CAN/ULC S133

Features

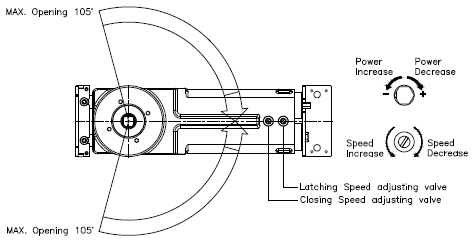

  • Adjustable closing & latching speed
  • Maximum door opening angle at 130°
  • Mechanical hold-open at 90° or 105° (optional upon request )
  • Concealed transom mount

In accordance with California PROP65 –

proimages/warning-6.png WARNING: Cancer & Reproductive Harm www.P65Warnings.ca.gov

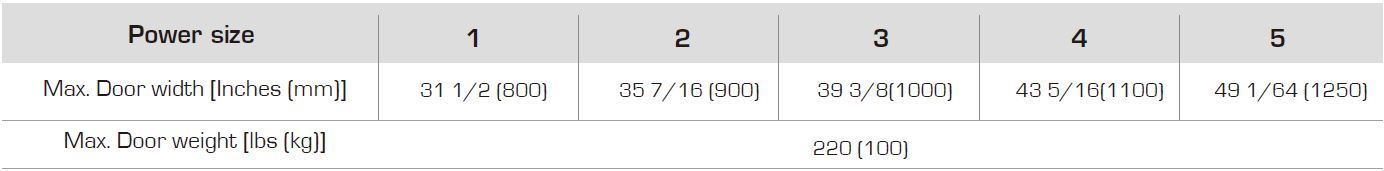

    proimages/R500_UL_table.JPG


Application Ranges

  • Suitable for single & double action door
  • Available for light , medium & heavy duty door

Finishes

  • Painted – silver black & other colors upon request & discussion

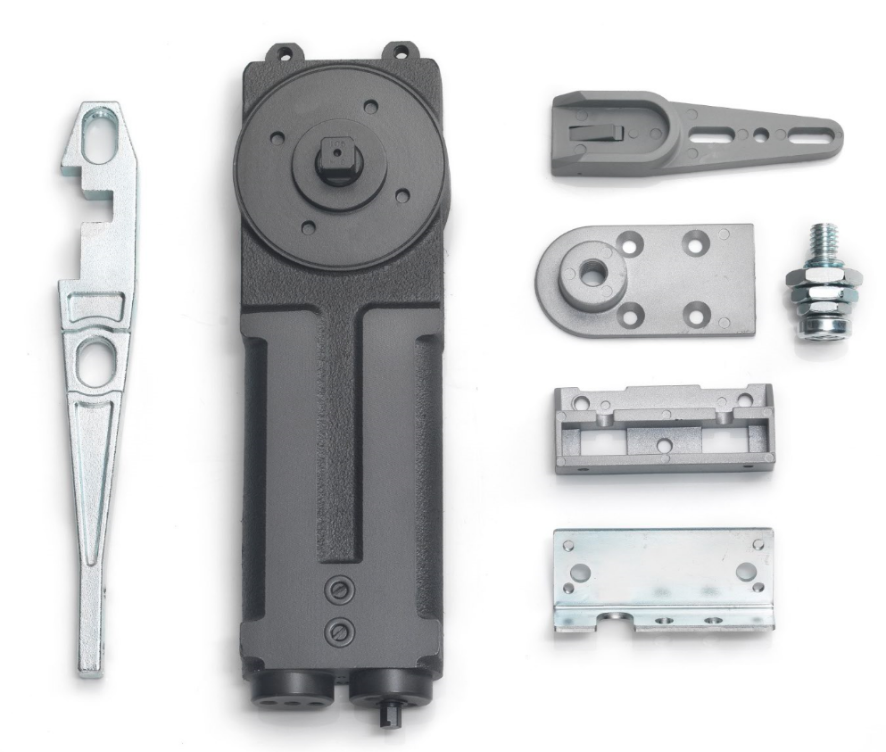

Accessories

  • Standrad arm
  • Side load arm
  • End load arm
  • Front bracket
  • Back bracket
  • Pivot
  • Heavy duty pivot (max door weight 330 lbs (150kg))

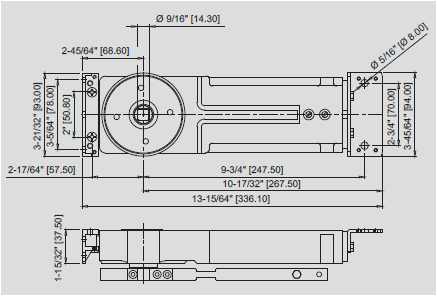

Dimensions

  • UL 228 (Door Closers-Holders, With or Without Integral Smoke Detectors)
