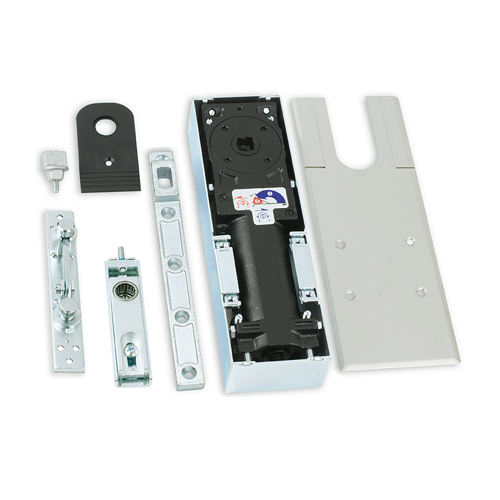

Product Name : EN 1-4 floor spring
Product No : B760-SR
Product Description
proimages/ce_logo.jpg
proimages/warrington.jpg

Features

  • Adjustable power size 1-4 EN certified

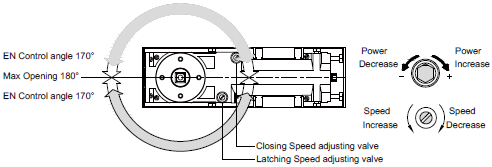

  • Adjustable closing & latching speed
  • Mechanical backcheck (Non-EN certified)
  • Maximum door opening angle 180° (EN control 170°) for single & double action applications
  • Mechanical hold-open at 90° (optional upon request)


Application Ranges

  • Suitable for single & double action door
  • Available for light , medium & heavy duty door
  • Closer mechanism adjustable in loose box for
    Length (mm) : 8
    Width (mm) : 4
    Height (mm) : NA

Finishes

  • Painted – blue & other colors upon request & discussion

Accessories

  • Standard arm
  • Pivot
  • Alternative spindle options
  • Offset arm

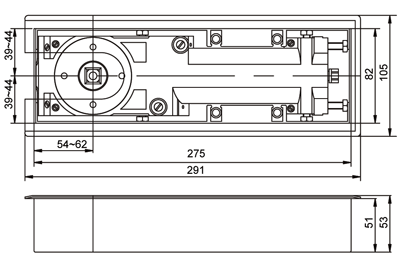

Dimensions

  • BS EN 1154 (Mechanical)
  • BS EN 1634 (Fire)
