Specifications
| Door width | 3’ standard for door width of 2’4” to 3’ (711mm to 914mm) 4’ standard for door width of 2’10” to 4’ (864mm to 1219mm) |
|---|---|
| Door thickness | 1-3/4” (44mm) and 2-1/4” (57mm) thick of metal or wood door |
| Fasteners | Furnished standard with sheet metal & machine screws. Sexnuts bolts supplied standard for fire rated exit device. |
| Latch Bolt | 3/4" (19mm) throw, deadlocking design |
| Strike | For 3/4” (19mm) stop |
| Reversible | Non-handed, reversible for all functions and trims |
| Stile | 4-1/4” (108mm) minimum |
| Cylinders | For trim, lever |
| Dogging | Hex key dogging on non-fire labeled device (9000R only) |
| Quiet damper | A fluid damper reduces the greatest noise associated with exit device operations |
| UL listed | UL/cUL listed as panic hardware (9100R/ 9200R) and 3 hours fire rated exit hardware (F9100R/ F9200R) |
| ANSI standard | A156.3 Grade 1 |
| Standard Finishes | US32D (or other available finishes upon request & discussion) |
In accordance with California PROP65 –
WARNING: Cancer & Reproductive Harm www.P65Warnings.ca.gov

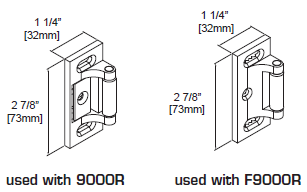

Strikes
Mounting Position

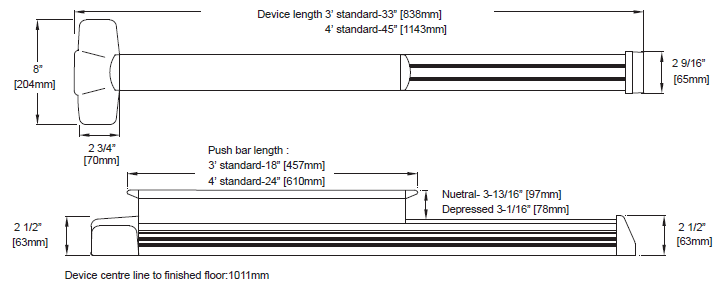

Dimensions

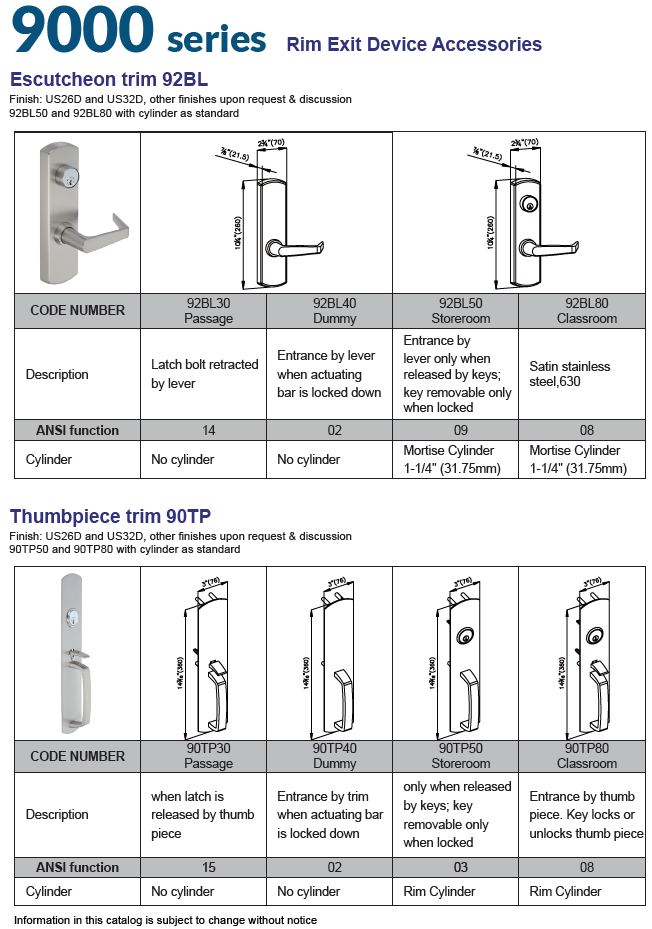

Options
- ANSI/BHMA A156.3, Grade 1 certified
- UL 305 (Panic Hardware)
- UL 10C (Positive Pressure Fire Tests of Door Assemblies)
