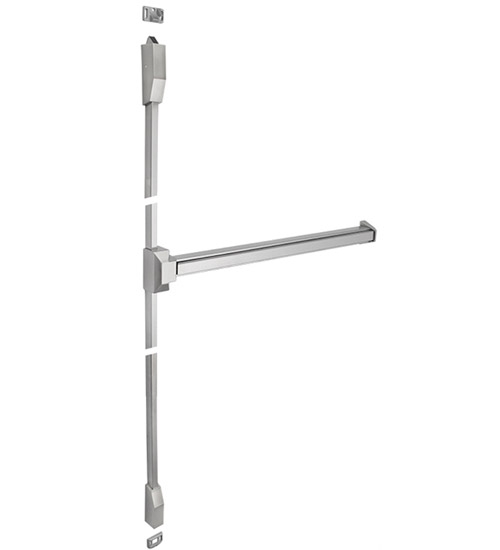

Product Name : Surface vertical rod device (Exit hardware/ Fire exit hardware)
Product No : 8000V
Product Description
proimages/UL.png

Specifications

Material Push bar –Steel pressed, stainless steel pressed or aluminum pressed
Head Cover – Zinc alloy
Spring – Stainless steel
Latch Bolt 3/4’ throw, stainless steel
Dead Latch Bolt 5/8”, steel
Strike For 5/8” stop. Plus shim for 1/2” stop
Projection Pushbar neutral: 2-3/16" (55mm)
Pushbar depressed: 1-7/8" (47mm)
Reversible Non-handed, reversible for all functions and trims
For Door 1-3/4” thick of wood or metal door
Backset 2-7/8"
Door Width 3’ standard for door width of 27" to 36"; 4’ standard for door width of 39" to 48"
Stile 4-1/4" minimum, 3-3/8" for narrow stile
Top and bottom rod length for 7’ door Top rod 45-1/4” , bottom rod 34”, other length upon request and discussion
Mounting Height 40-5/16” from CL to finished floor recommended
Mounting Furnished standard with sheet metal & machine screws or SNB as option.
Cylinders For trim, knob, lever & thumb-piece type “Schlage C” key way
Dogging 1/4 turn, hex key dogging on non-fire labeled device
UL Listed For “Panic Hardware” and “UL”. Labeled (1.5 hours) fire exit hardware
Operation Inside by slight pressure on any point of the push bar all time

In accordance with California PROP65 –

proimages/warning-6.png WARNING: Cancer & Reproductive Harm www.P65Warnings.ca.gov

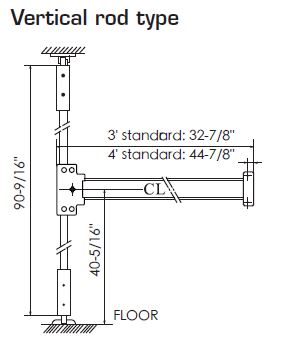

Drawings & Dimensions

proimages/Catalog/Drawings__Dimensions__8000V.JPG

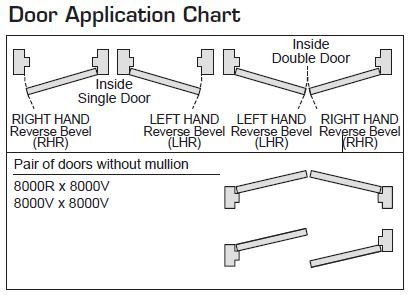

Mounting Position

proimages/Catalog/Mounting_Position_8000V_1.JPG




Model Actual Length Minimum Door Size
3' standard 32-7/8" (836mm) 26" (660mm) 35" to 36" door width
4' standard 44-7/8" (1141mm) 38" (965mm) 47" to 48" door width

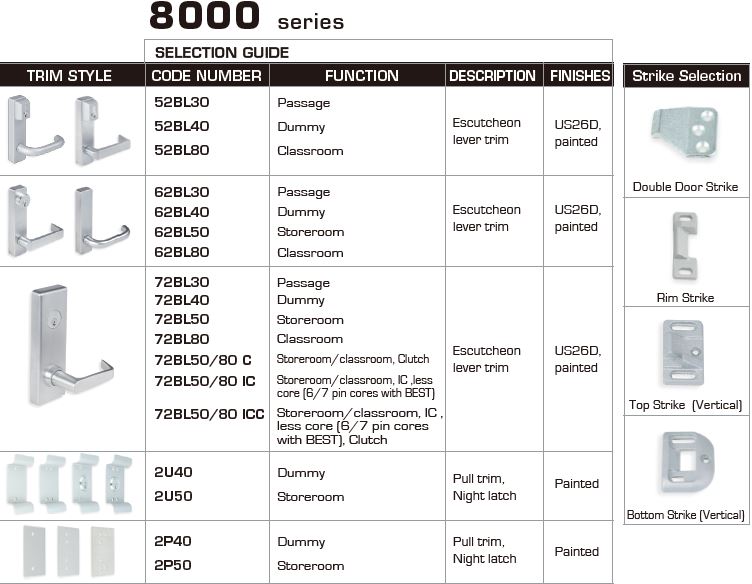

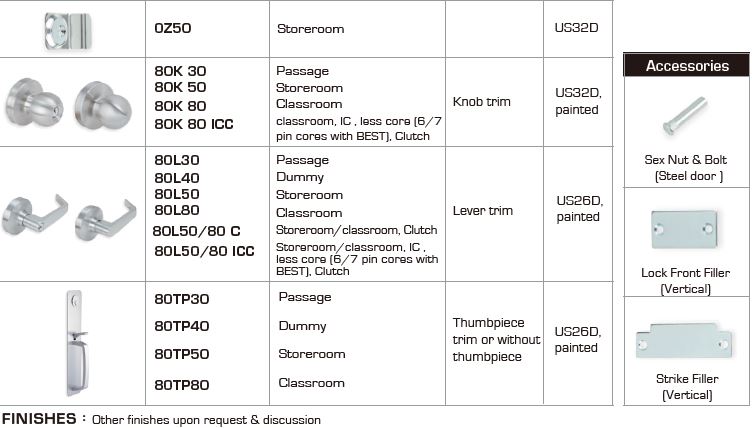

Options

proimages/option-8000_1.JPGproimages/option-8000_2.JPG
  • UL 305 (Panic Hardware)
  • UL 10C (Positive Pressure Fire Tests of Door Assemblies)
