Product Name : Transom Closer
Product No : R500EN

Product Features:

  •  Fixed power size EN 2/ 3/ 4 (EN 2 non-EN certified)
  • Adjustable closing & latching speed
  • Maximum door opening angle at 130 °
  • Mechanical hold-open at 90 °  (optional upon request )
  • Concealed transom mount

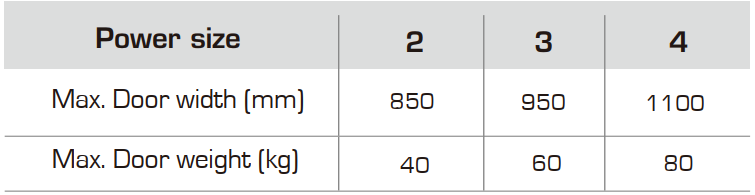

    proimages/R500_EN_table.JPG

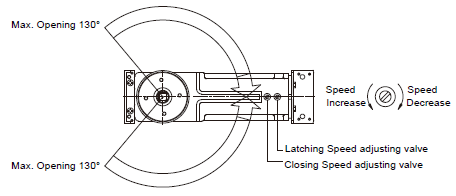

proimages/R500_opening.png

Application Ranges

  • Suitable for single & double action door
  • Available for light , medium & heavy duty door

Finish

  • Painted – silver black & other colors upon request & discussion

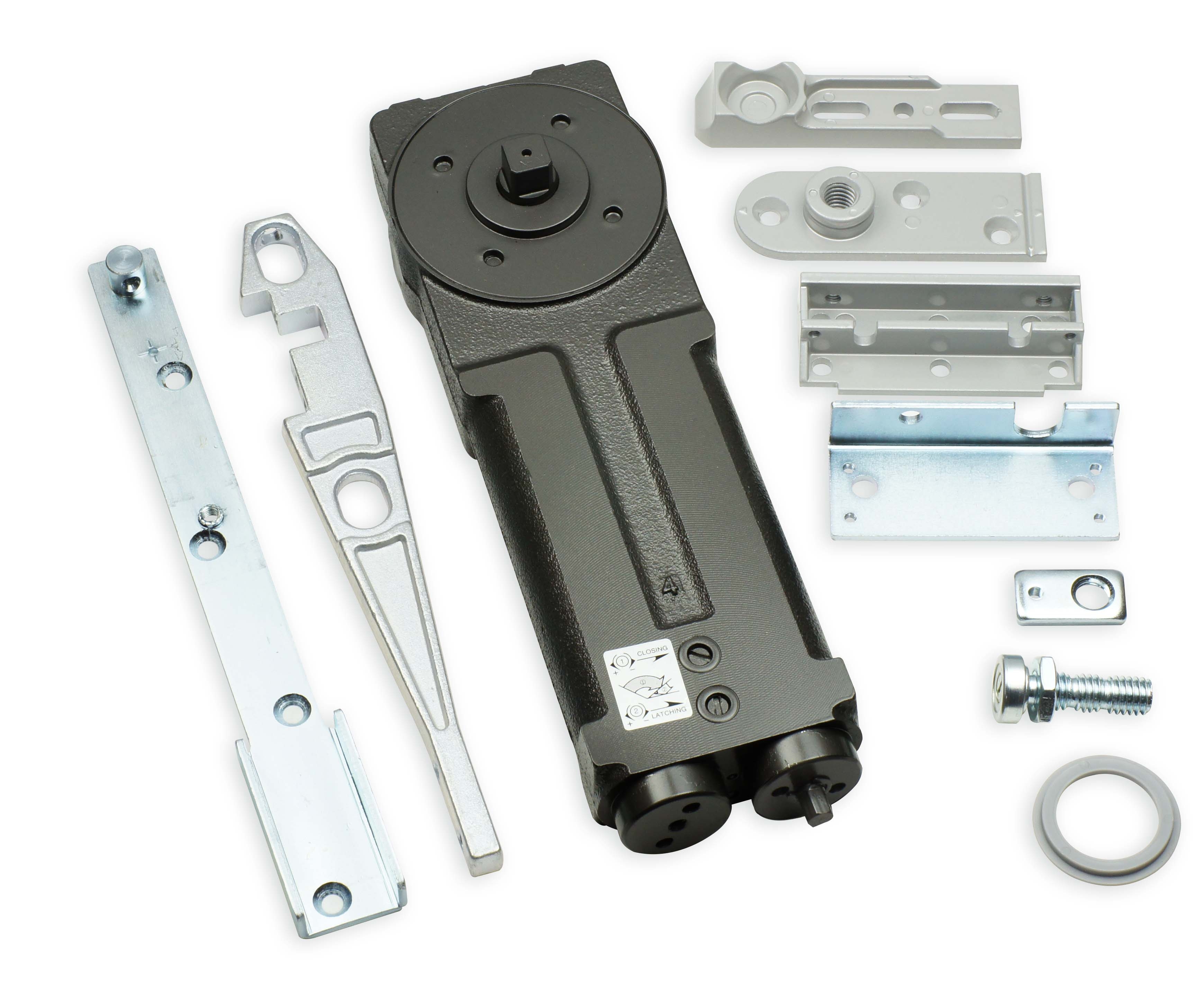

Accessories

  • Standrad arm
  • Side load arm
  • End load arm
  • Front bracket
  • Back bracket
  • Pivot
  • Heavy duty pivot (max door weight 330 lbs (150kg))

Dimensions

  • EN1154
