Features

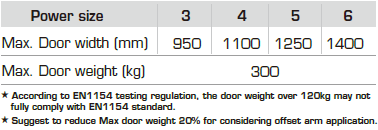

- Adjustable power size conforms to EN3-6

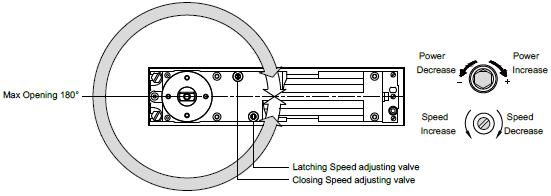

- Adjustable closing & latching speed
- Mechanical backcheck(EN certified)

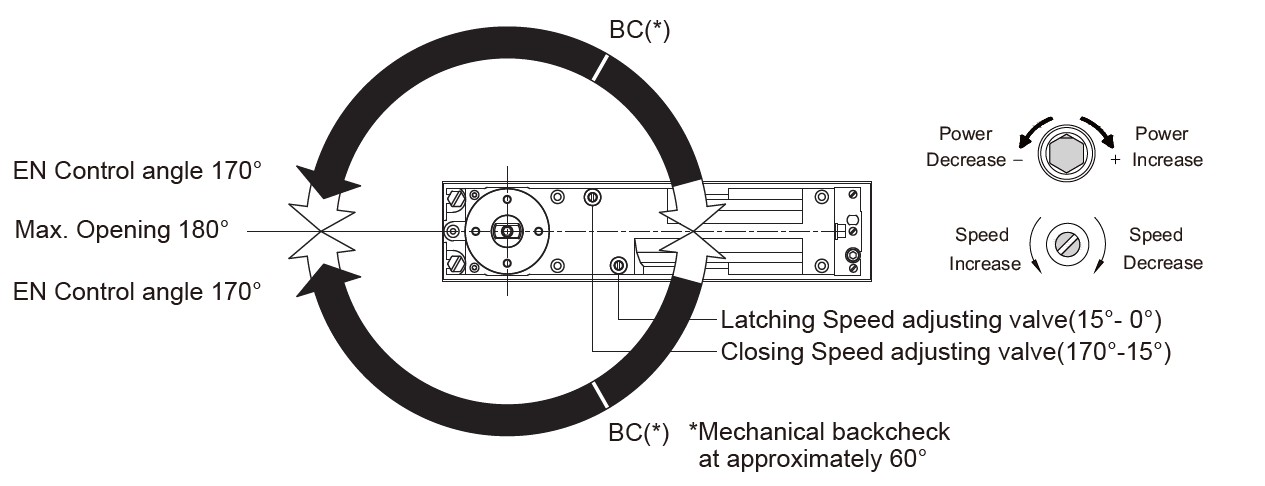

- Maximum door opening angle 180° (EN control 170°)
- Mechanical hold-open at 90° (optional upon request)
Application Ranges
- Suitable for single & double action door
- Available for light , medium & heavy duty door
- Closer mechanism adjustable in loose box for
Length (mm) : 5
Width (mm) : 4
Height (mm) : NA
Finishes
- Painted – silver black & other colors upon request & discussion
Accessories
- Standard arm
- Pivot
- Alternative spindle options
- Offset arm(this option is not covered by certification)

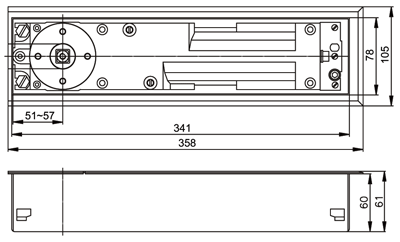

Dimensions:
