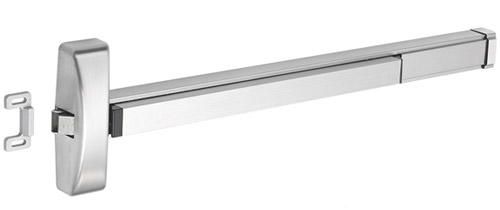

Product Name : Rim device (Exit hardware/ Fire exit hardware)
Product No : 7100R
Product Description
proimages/AN-3.png

Specifications


Material
Push bar –Steel pressed or stainless steel pressed
Head Cover – Steel pressed or stainless steel pressed
Spring – Stainless steel
Latch Bolt 5/8" throw, stainless steel
Dead Latch Bolt 9/16”, steel
Strike For 5/8" stop
Projection 2-1/2” maximum, 1-15/16” pressed
Reversible Non-handed, reversible for all functions and trims
Door Thickness 1-3/4” thick of wood or metal door. Specify thickness if other than 1-3/4”
Door Width 3’ standard for door width of 3’ to 3’-6”; 4’ standard for door width of 4’-2" to 4’-8”
Stile 4-1/4” minimum
Mounting Height 40-5/16” from centerline to finished floor recommended
Mounting

Furnished standard with sheet metal & machine screws or SNB as option

Cylinders For trim, knob, lever & thumb-piece type “Schlage C” keyway
Dogging 1/4 turn, hex key dogging on non-fire labeled device
UL listed For "Panic Hardware" and "UL". Labeled (3 hours) fire exit hardware
ANSI standard A156.3 Grade 1
Operation Inside by slight pressure on any point of the push bar all time
Head Cover 8-1/2” x 2-3/4” x 2-1/2” (216mm x 68.3mm x 62mm) or
6-1/3” x 2-3/4” x 2-1/2” (160mm x 68.2mm x 60mm)
Standard Finishes US32D (or other available finishes upon request & discussion)

In accordance with California PROP65 –

proimages/warning-6.png WARNING: Cancer & Reproductive Harm www.P65Warnings.ca.gov

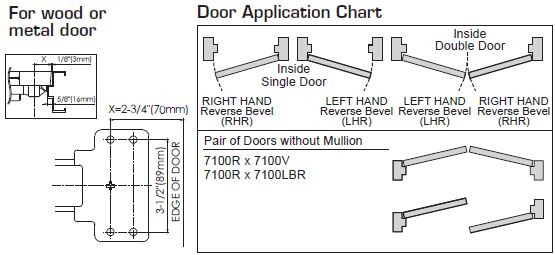

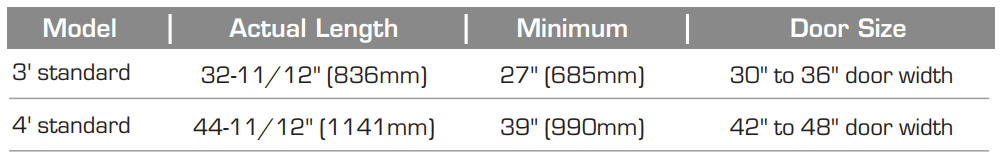

Mounting Position

proimages/7100r-mounting2.PNG


proimages/7100r-mounting.PNG

proimages/7100r-mo3.png

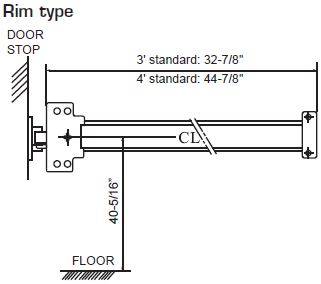

Drawings & Dimensions

Options

proimages/7100-op.png
  • ANSI/BHMA A156.3, Grade 1 certified
  • UL 305 (Panic Hardware)
  • UL 10C (Positive Pressure Fire Tests of Door Assemblies)
