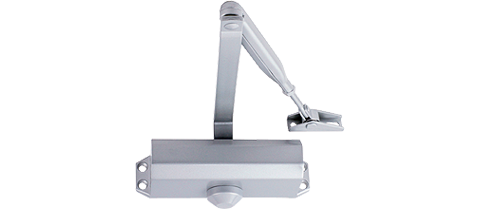

Product Name : Selectable power size 2-4 door closer, rack & pinion with link arm
Product No : C77Z
Product Description
proimages/UL.png
black

black

brown

brown

gold

gold

silver

silver

white

white

Inquiry

Features

  • Selectable position power size 2~4
  • Adjustable closing & latching speed
  • Adjustable back check (optional upon request)
  • Thermo-constant valve
  • Surface mount
  • Rack & Pinion
  • Standard arm
  • Built in hold-open (optional upon request) ★
  • Single-action door
  • Non-handed installation
★ This option is not covered by the Certificate

In accordance with California PROP65 –

proimages/warning-6.png WARNING: Cancer & Reproductive Harm www.P65Warnings.ca.gov



Application Ranges

  • Standard door mount on pull side
  • Transom mount on push side
  • Parallel bracket mount on size 2~3

Finishes

  • Painted – silver, brown, gold, black, white & other RAL colors upon request & discussion
  • Plating (for cover only) - US finish code colors upon request & discussion

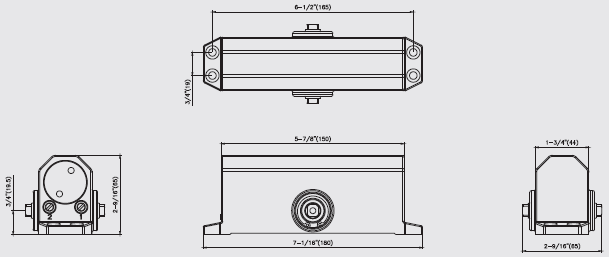

Dimensions

proimages/Catalog/C77Z-di1.PNG

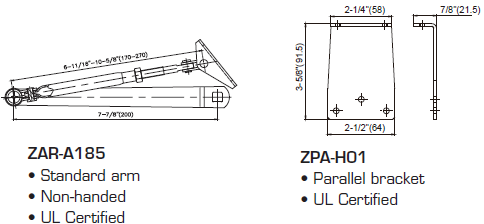

Accessories

proimages/Catalog/C77Z-accessories.png

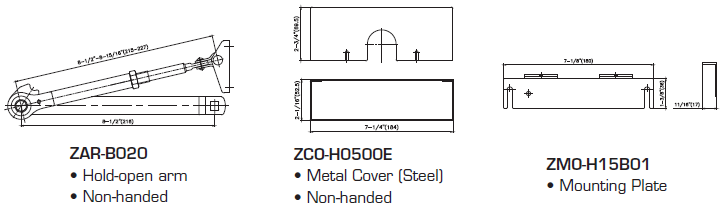

Options

proimages/Catalog/C77Z-options.png

  • UL 228 (Door Closers-Holders, With or Without Integral Smoke Detectors)
  • ANSI/UL 10C (Positive Pressure Fire Tests of Door Assemblies)
