Specifications
| Material | Push bar –Steel pressed or stainless steel pressed Head Cover – Steel pressed or stainless steel pressed Spring – Stainless steel |
|---|---|
| Latch Bolt | 5/8’ throw, stainless steel |
| Dead Latch Bolt | 9/16”, steel |
| Strike | For 5/8” stop |
| Projection | 2-1/2” maximum, 1-7/8” pressed |
| Reversible | Non-handed, reversible for all functions and trims |
| For Door | 1-3/4” thick of wood or metal door |
| Door Width | 3’ standard for door width of 29” to 36”; 4’ standard for door width of 41” to 48” |
| Stile | 4-1/4” minimum |
| Top and bottom rod length for 7’ door |
Top rod 32-1/2” , bottom rod 31-5/8” |
| Top and bottom rod length for 8’ door |
Top rod 44-1/2” , bottom rod 31-5/8” |
| Mounting Height | 40-5/16” from CL to finished floor recommended |
| Mounting | Furnished standard with sheet metal & machine screws or SNB as option. |
| Cylinders | For trim, knob, lever & thumb-piece type “Schlage C” key way |
| Dogging | 1/4 turn, hex key dogging on non-fire labeled device |
| UL Listed | For “Panic Hardware” and “UL”. Labeled (3 hours) fire exit hardware. |
| Ansi Standard | A156.3 Grade 1 |
| Operation | Inside by slight pressure on any point of the push bar all time |
| Head Cover | 8-1/2”x2-3/4”x2-1/2” (216mm x 68.3mm x 62mm) |
| Standard Finishes | US32D (or other available finishes upon request & discussion) |
In accordance with California PROP65 –
WARNING: Cancer & Reproductive Harm www.P65Warnings.ca.gov
Drawings & Dimensions

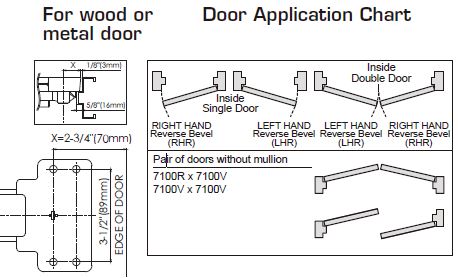

Mounting Position
| Model | Actual Length | Minimum | Door Size |
| 3' standard | 32-7/8" (836mm) | 29" (735mm) | 35" to 36" door width |
| 4' standard | 44-7/8" (1141mm) | 41" (1040mm) | 47" to 48" door width |
Options
- ANSI/BHMA A156.3, Grade 1 certified
- UL 305 (Panic Hardware)
- UL 10C (Positive Pressure Fire Tests of Door Assemblies)
