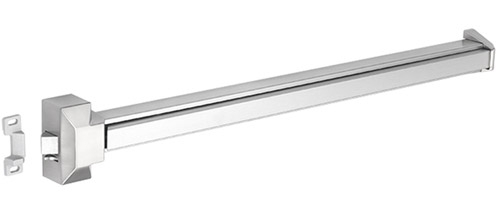

Product Name : Rim device (Exit hardware/ Fire exit hardware)
Product No : 8000R
Product Description
proimages/UL.png

Specifications

Material Push bar –Steel pressed, stainless steel pressed or aluminum pressed
Head Cover – Zinc alloy
Spring – Stainless steel
Latch Bolt 3/4" throw , deadlocking design
Strike For 5/8” stop. Plus shim for 1/2” stop
Projection Pushbar Neutral: 2-3/16"(55mm)
Pushbar Depressed: 1-7/8"(47mm)
Reversible Non-handed, reversible for all functions and trims
For Door 1-3/4” thick of wood or metal door
Door Width 3’ standard for door width of 27” to 36"; 4’ standard for door width of 39" to 48"
Stile 4-1/4” minimum. 2-3/8” for narrow stile
Mounting Height 40-5/16” from CL to finished floor recommended
Mounting Fasteners Furnished standard with sheet metal & machine screws or SNB as option
Cylinders For trim, knob, lever & thumb-piece type
Dogging 1/4 turn, hex key dogging on non-fire labeled device
UL Listed For “Panic Hardware” and “UL”. Labeled (1.5 hours) fire exit hardware
Operation Inside by slight pressure on any point of the push bar all time

In accordance with California PROP65 –

proimages/warning-6.png WARNING: Cancer & Reproductive Harm www.P65Warnings.ca.gov

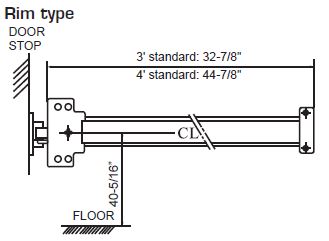

Drawings & Dimensions


proimages/Drawings__Dimensions__8000R_(1.5H).JPG

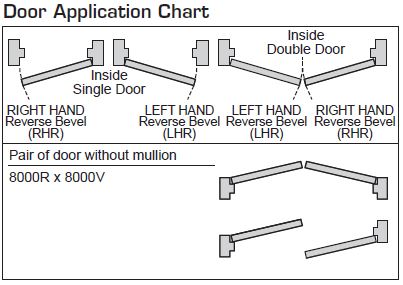

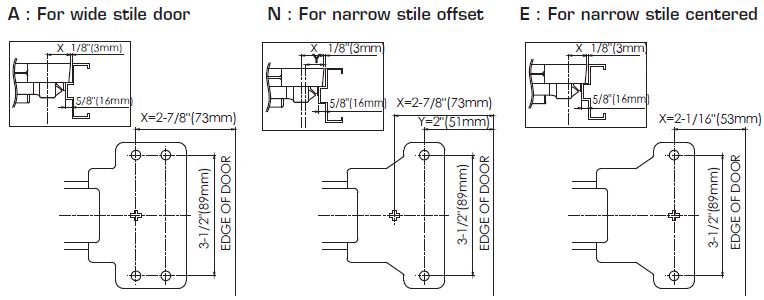

Mounting Position

proimages/Mounting_Position_8000R_(1.5H)_1.JPG
proimages/Catalog/Mounting_Position_8000R_(1.5H)_2.JPG

Model Actual Length Minimum Door Size
3' standard 32-7/8" (836mm) 26" (660mm) 35" to 36" door width
4' standard 44-7/8" (1141mm) 38" (965mm) 47" to 48" door width

Options



proimages/8000R(1.5h)__option.JPG
proimages/option-8000_1.JPGproimages/option-8000_2.JPG
  • UL 305 (Panic Hardware)
  • UL 10C (Positive Pressure Fire Tests of Door Assemblies)
