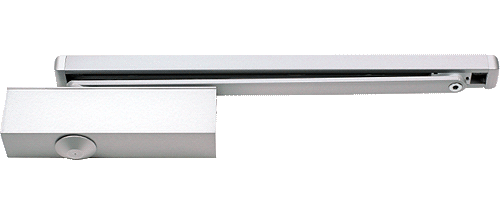

Product Name : EN 3 door closer, cam action system
Product No : T91B
Product Description
proimages/ce_logo.jpg
proimages/warrington.jpg
black

black

brown

brown

gold

gold

silver

silver

white

white

Features

  • Fixed power size 3
  • Adjustable closing & latching speed
  • Thermo-constant valve
  • Surface mount
  • Cam action
  • Track arm
  • Single-action door
  • Non-handed installation
  • Compatible with Fortress electromagnetic hold-open application (EHO)

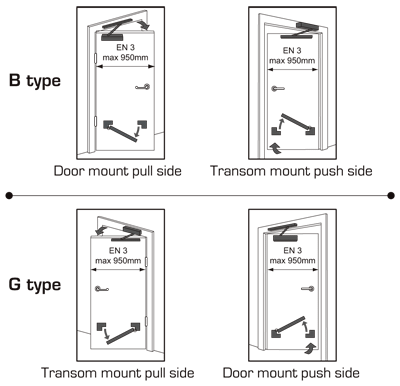

Application Ranges

  • B type: Door mount pull side & transom mount push side
  • G type: Door mount push side & transom mount pull side
  • Max. door width (mm) 950
  • Max. opening angle 180

Installation

Finishes

  • Anodized aluminum for door closer body and track rail as standard
  • Painted – silver, brown, gold, black, white & other RAL colors upon request & discussion
  • Plating (for cover only) - US finish code colors upon request & discussion

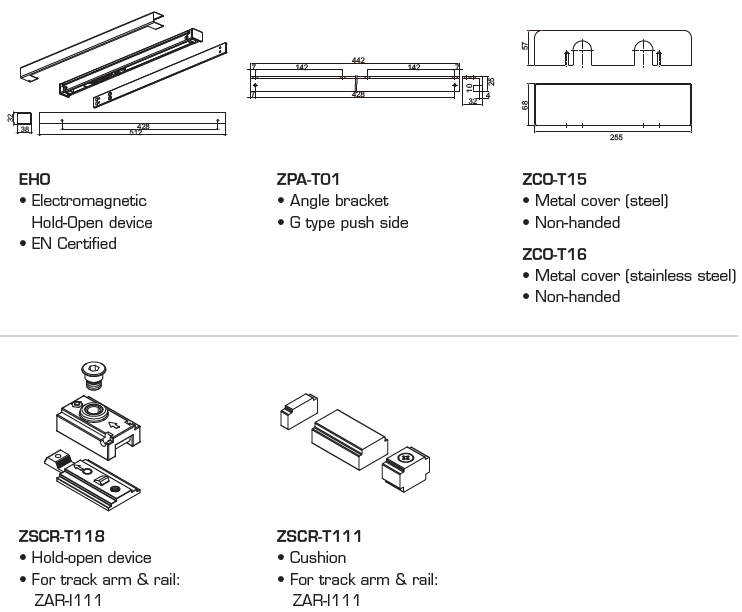

Accessories


Options

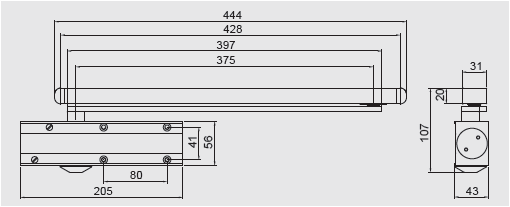

Dimensions

  • BS EN 1154 (Mechanical)
  • BS EN 1634 (Fire)
  • BS EN 1158 (Door coordinator devices)
  • BS EN 1155 (Electrically powered hold-open devices)
