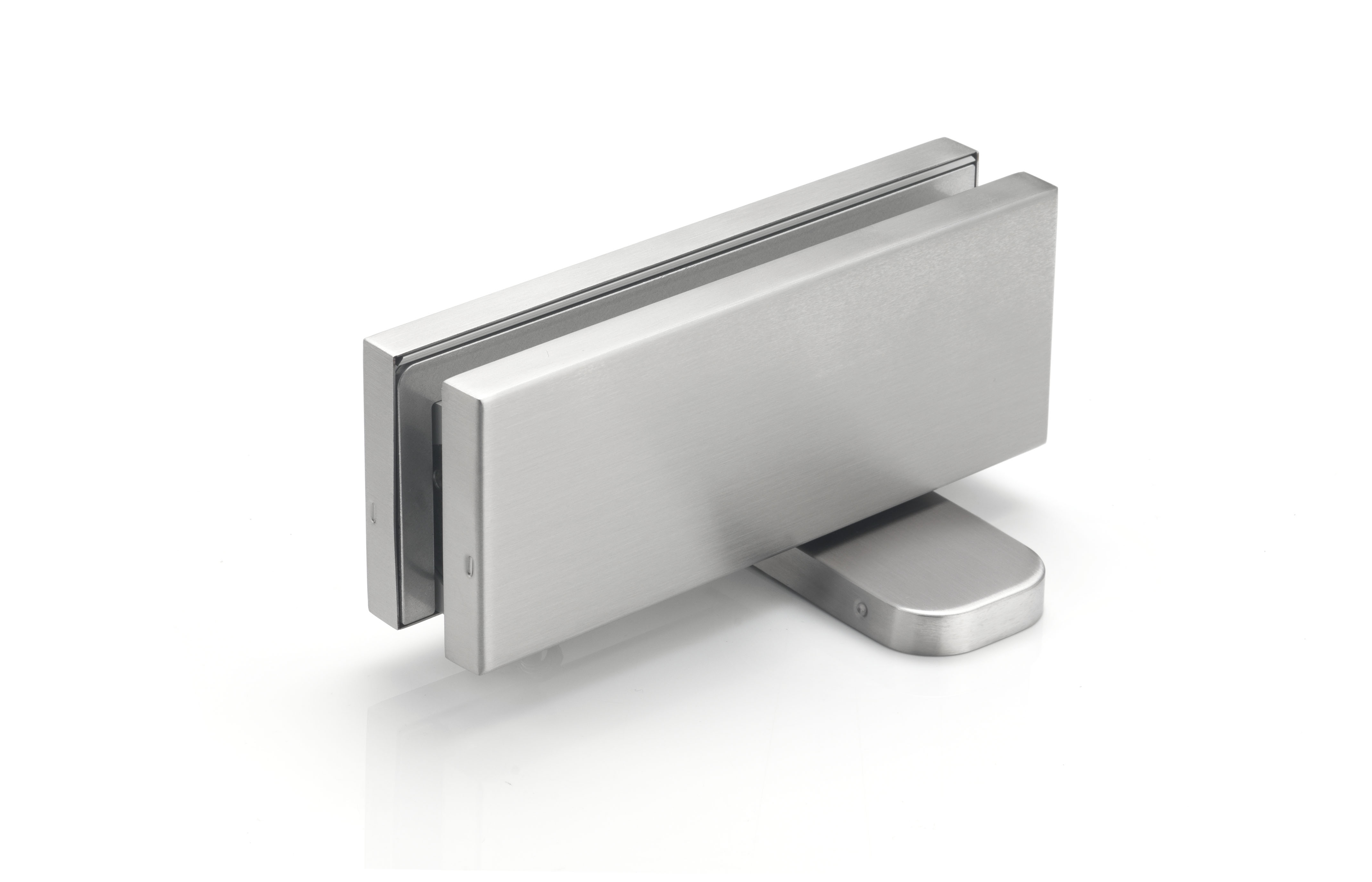

Product Name : Hydraulic patch fitting power size 3 UL compliance
Product No : B300UL
Product Description
proimages/UL.png
Inquiry

Features

  • Fixed power size 3
  • Adjustable closing & latching speed

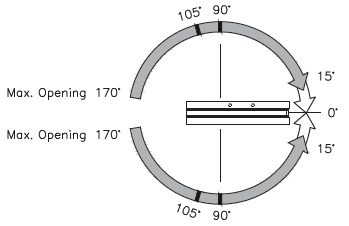

  • Maximum door control opening angle at 170°
  • Mechanical hold-open at 90°or 105°
    (non-UL certified option upon request & discussion )

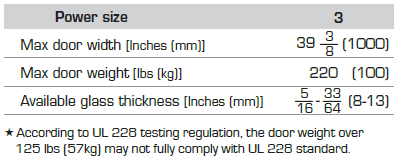

 proimages/B300_UL__table.PNG

proimages/B300_opening_angle.PNG

In accordance with California PROP65 –

proimages/warning-6.png WARNING: Cancer & Reproductive Harm www.P65Warnings.ca.gov



Application Ranges

  • Suitable for double action door
  • Available for light & medium duty door

Finishes

  • US32D (satin stainless steel) or other finishes upon request & discussion

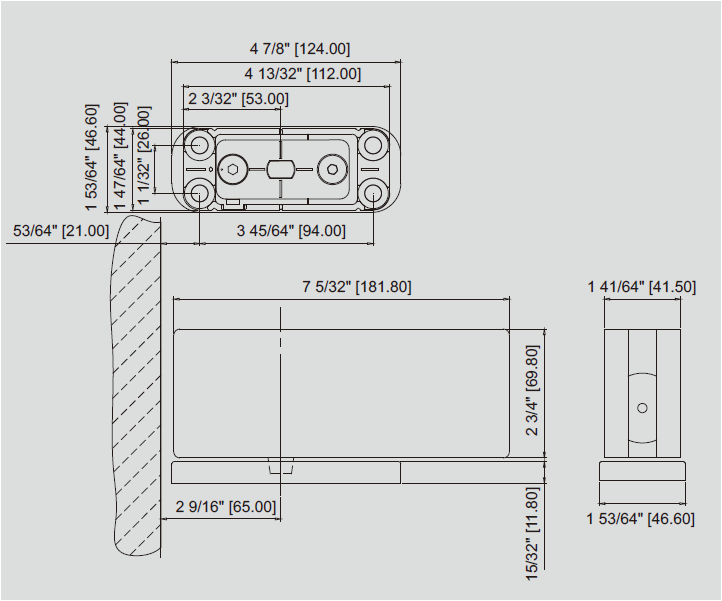

Dimensions

proimages/B300-di.png

  • UL 228 (Door Closers-Holders, With or Without Integral Smoke Detectors)
