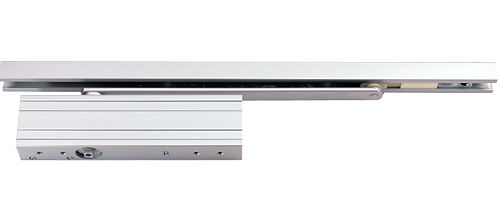

Product Name : EN 3 concealed door closer, rack & pinion with slide arm
Product No : T66B
Product Description
proimages/ce_logo.jpg
proimages/warrington.jpg
black

black

brown

brown

gold

gold

silver

silver

white

white

Features

  • Fixed power size 3
  • Adjustable closing & latching speed
  • Thermo-constant valve
  • Concealed mount
  • Rack & Pinion
  • Track arm
  • Hold-open function is reversible
  • Built in cushion limit stay
  • Single-action door
  • Non-handed installation

Application Ranges

  • Concealed in door
  • Max. door width (mm) 950
  • Max. opening angle 105

Finishes

  • Anodized aluminum for door closer body as standard
  • Painted – silver, brown, gold, black, white & other RAL colors upon request & discussion

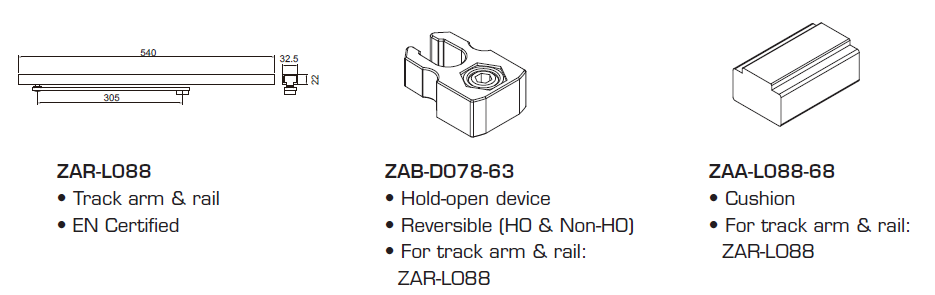

Accessories

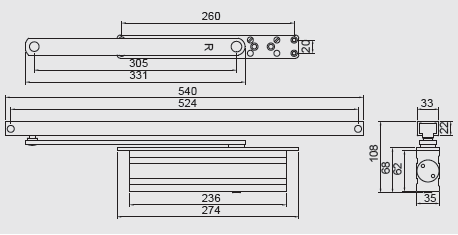

Dimensions

  • BS EN 1154 (Mechanical)
  • BS EN 1634 (Fire)
