Bottom Rail Concealed Door Closer
  • Bottom Rail Concealed Door Closer
Bottom Rail Concealed Door Closer

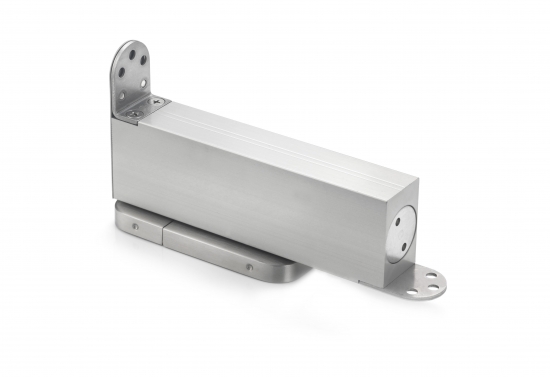

Product Name : Bottom Rail Concealed Door Closer
Product No : B330
Inquiry

Features

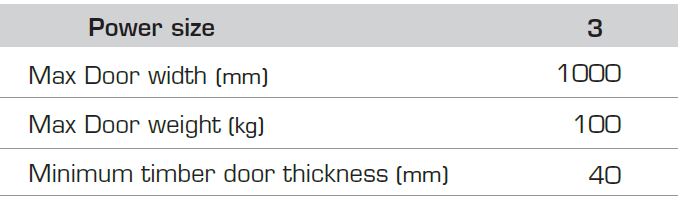

  •  Fixed power size EN1154 EN3 compliance
  •  Adjustable closing & latching speed

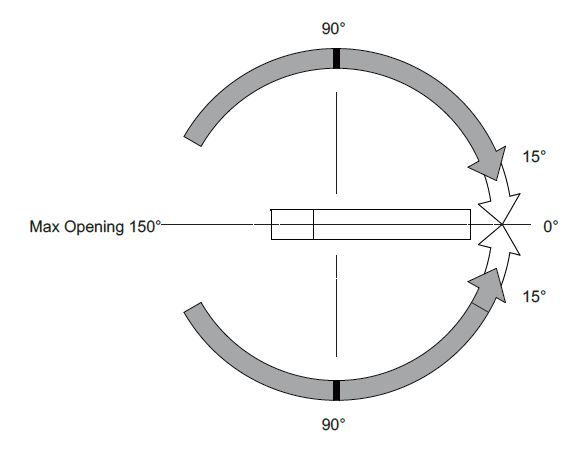

  •  Maximum door opening angle at 150°
  •  Maximum door control opening angle at 150°
  •  Mechanical hold-open at 90° (optional upon request)

proimages/B330_table.JPG


proimages/B330_open_angle.JPG

Application Ranges

  • Suitable for double action door
  • Available for light & medium duty door

Finishes

  • Anodized aluminum for floor spring body as standard
  • Base - US32D (satin stainless steel) or other
  • finishes upon request & discussion

Accessories

  • Pivot

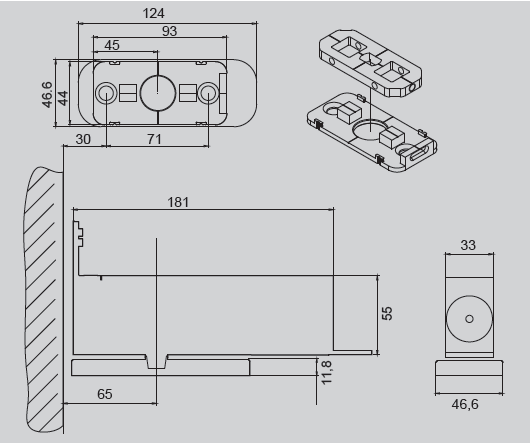

Dimensions

proimages/B330_M7_dimension.PNG
