Product Name : Power size 2/3 floor spring
Product No : B740

Features

  • Fixed power size 2/3 EN compliance
  • Adjustable closing & latching speed
  • Maximum door opening angle at 130°
  • Mechanical hold-open at 90° (optional upon request)


Application Ranges

  • Suitable for single & double action door
  • Available for light & medium duty
  • Closer mechanism adjustable in loose box for
    Length (mm) : 6
    Width (mm) : 6
    Height (mm) : NA

Finishes

  • Painted – blue & other colors upon request & discussion

Accessories

  • Standard arm
  • Pivot
  • Offset arm

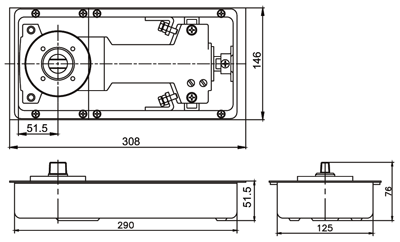

Dimensions
