Product Name : Power size 2 floor spring
Product No : B710

Features

  • Fixed power size 2 EN compliance

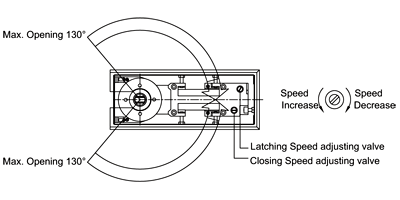

  • Adjustable closing & latching speed
  • Maximum door opening angle at 130o
  • Mechanical hold-open at 90o (optional upon request)

Application Ranges

  • Suitable for single & double action door
  • Available for light duty only
  • Max. door width (mm) 900
  • Max. door weight (kg) 80
  • Closer mechanism adjustable in loose box for
    Length (mm) : 8
    Width (mm) : 8
    Height (mm) : 6

Finishes

  • Painted – silver black & other colors upon request & discussion

Accessories

  • Standard arm
  • Pivot
  • Offset arm

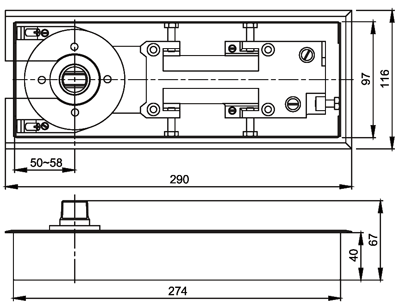

Dimensions
